| I. Model information | |

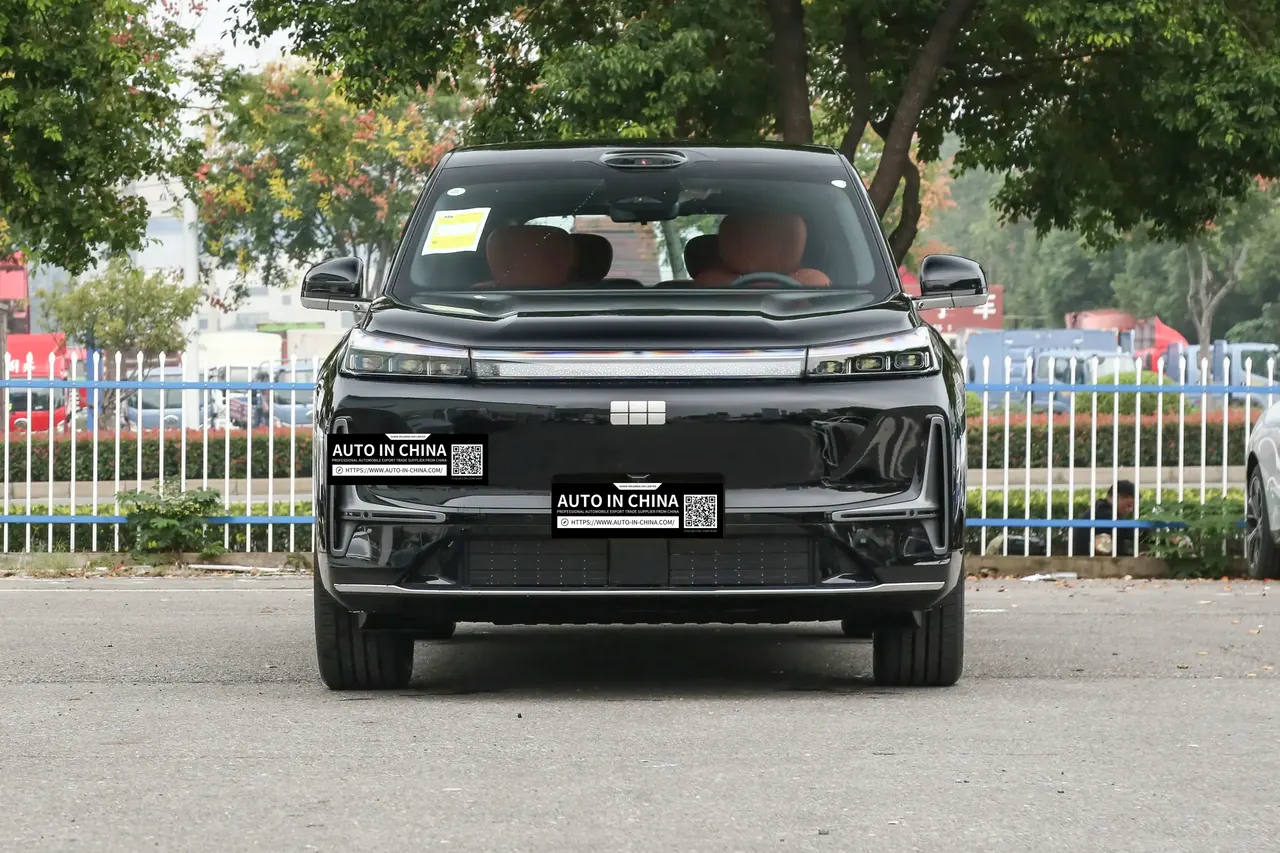

| Model name | Geely Galaxy M9 100km 2WD Qihang (Voyage) Edition |
| Manufacturer | Geely Automobile |
| Class | Mid-to-large SUV |
| Energy type | Plug-in Hybrid (PHEV) |
| Body structure | 5-door 6-seat SUV |
| Drivetrain | 2WD (front-mounted P3 single motor) |
| Emission standard | China VI-b |
| II. Vehicle dimensions & parameters | |
| L x W x H (mm) | 5205 x 1999 x 1800 |
| Wheelbase (mm) | 3030 |
| Curb weight (kg) | 2180 |
| GVW (kg) | 2680 |
| Fuel tank capacity (L) | 60 |

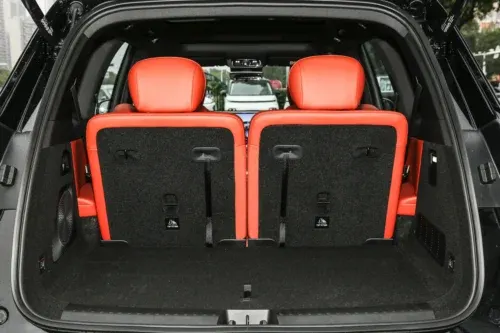

| Trunk volume (L) | 328 (6 seats up); expandable to 2171 |
| Seating layout | 2+2+2 (6 seats) |
| Seating capacity | 6 |
| Drag coefficient (Cd) | 0.285 |
| 0-100 km/h (s) | 7.7 |
| Top speed (km/h) | 200 |
| III. Powertrain | |
| Powertrain | PHEV (NordThor EM-P AI hybrid) |
| Engine | 1.5T dedicated hybrid engine |
| Engine max power (Ps/kW) | 163 / 120 |
| Engine max torque (N·m) | 255 |
| Engine max thermal efficiency | 47.26% |
| Fuel grade | 92# or above |
| Transmission | 3DHT Evo e-drive |
| System max power (kW) | 300 |
| System max torque (N·m) | 605 |
| Motor layout | Front-mounted (P3) |
| Shifter | Column shifter |
| IV. Battery & charging | |
| Traction battery capacity (kWh) | 18.4 |
| Battery type | LFP (Shield battery, CATL) |
| CLTC pure-electric range (km) | 100 |
| CLTC combined range (km) | 1325 |
| 30%-80% DC fast charge (min) | 20 |
| V2L discharge | 6 kW (AC charging 6.6 kW) |
| WLTC fuel cons. (L/100km) | 5.7 |
| CLTC fuel cons. (L/100km) | 4.9 |
| V. Chassis & wheels | |
| Front suspension | Double-wishbone independent |
| Rear suspension | Five-link independent |
| CCD CV dampers | — |
| Tire specification | 255/50 R20 |
| Wheels | 20-inch alloy wheels |
| Drive modes | Smart/EV/Performance/Range-extender |
| VI. Exterior | |
| Front full-width lamp | Star-Ripple front lamp (380 micro LEDs) |

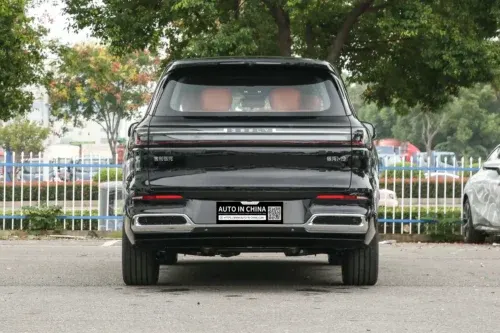

| Tail lamp | Sunrise tail lamp (436 LEDs) |
| Matrix ADB headlamp | Optional |
| Active grille shutter (AGS) | ● |
| Panoramic roof | Dual panoramic glass roof |
| Tailgate kick sensor | ● |
| Exterior colors | Shining Silver, Sky Isle Blue, Pine Green, Midnight Black, Cloud Gray, Horizon White |

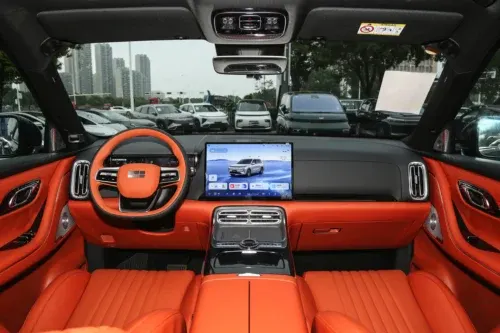

| VII. Cockpit & intelligence | |
| Cockpit chip | Qualcomm Snapdragon 8295P |
| Infotainment OS | Flyme Auto 2 |
| Center display | 15.4-inch 3K center display |
| Instrument cluster | 12.66-inch HD LCD |
| AR-HUD | — |
| 2nd-row display | Optional (standard on Explorer/Pilot) |
| Wireless charging | 50W cooled wireless charging x1 (front) |
| Heated steering wheel | — |
| AI cockpit | AI BOX (7B on-device LLM) + AI Agent |

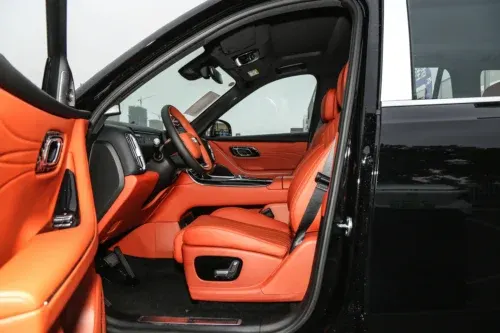

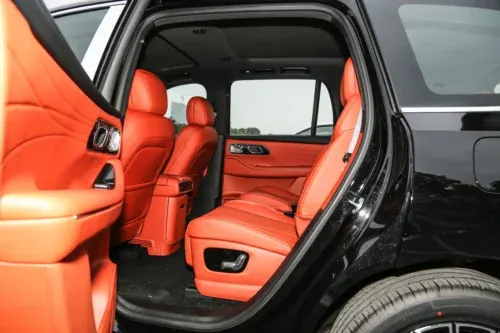

| VIII. Seating & comfort | |
| Upholstery | Microfiber leather |
| 1st-row heat/vent | Graphene heat/vent ● |
| 1st-row massage | — |
| Driver adaptive lumbar/bolster | — |
| Passenger leg rest/recline | — |
| 2nd-row heat/vent/massage | — |
| 2nd-row tray table | — |
| 3rd-row heat | — |
| 9.1L refrigerator (-6 to 50 C) | — |
| 220V outlet | — |
| IX. AI advanced driver assistance | |
| ADAS solution | Basic ADAS (ICC / ACC / AEB, etc.) |
| ADAS chip | — |
| Sensors | 360-degree surround view |
| Urban NOA | — |
| Highway NOA | — |
| ACC | ● |
| ICC | ● |
| Parking assist (APA/RPA/HPA) | — |
| D2D valet assist | — |
| AEB | ● |
| ELKA | ● |
| AES | — |
| Sentry mode | ● |
| X. Safety | |
| Airbags | 8 |
| Front frontal/side airbags | ● / ● |
| Roof-mounted side curtain | ● |
| 2nd-row side airbags | ● |
| Dual-chamber far-side airbag | — |
| Occupant left-behind monitor | — |
| Body structure | Star-Arm cage body (torsional rigidity 32500 N·m/deg) |
