| Model | |

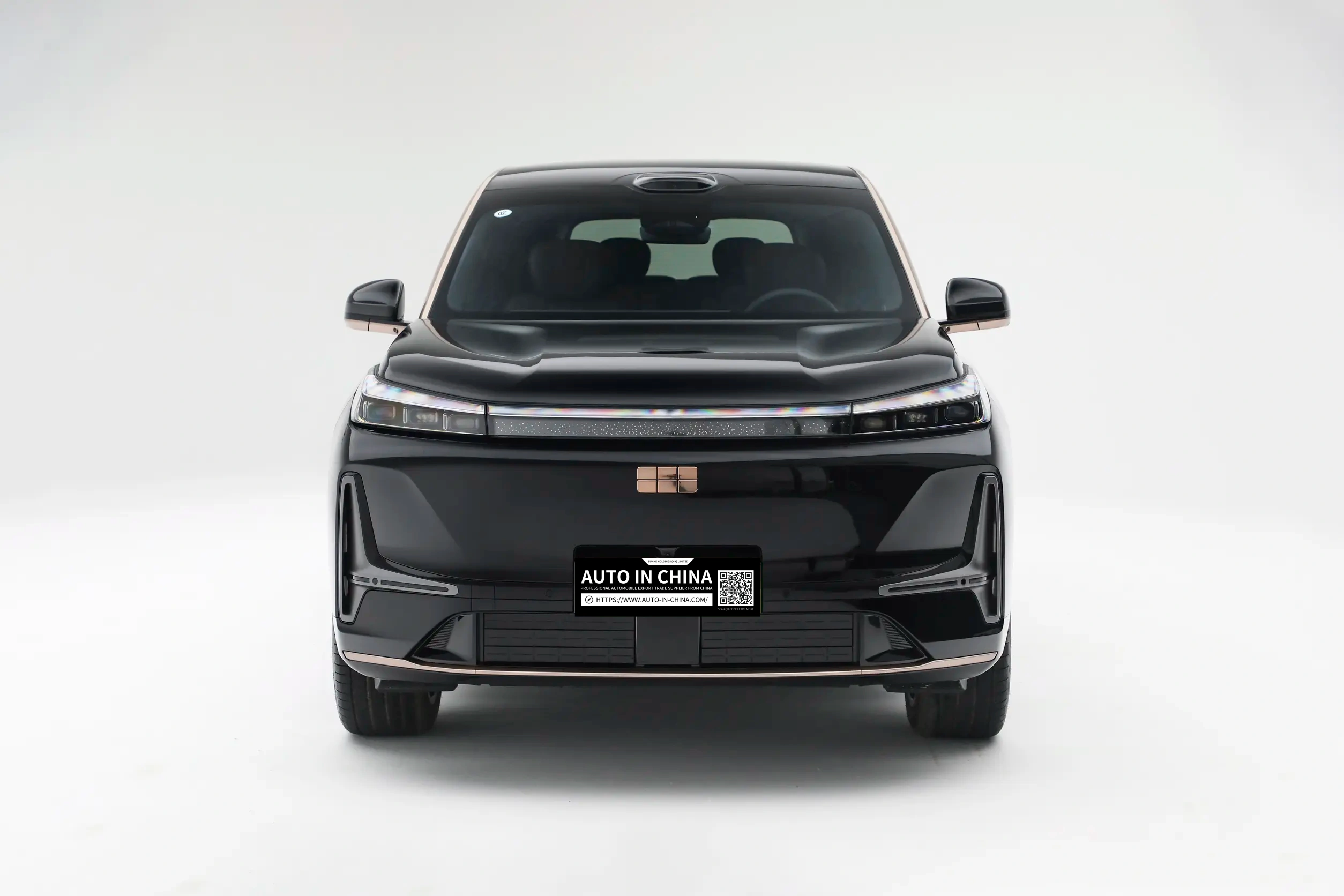

| Model | 2026 Geely Galaxy M9 210km 4WD Black-Gold Smart Shine Edition |
| Energy type | Plug-in Hybrid (Raytheon EM-P AI PHEV) |
| Emission standard | China VI b |
| Vehicle | |
| L×W×H (mm) | 5205×1999×1800 |
| Wheelbase (mm) | 3030 |
| Track, F/R (mm) | 1706 |
| Approach/Departure angle | 17 |
| Body structure | 5-door 6-seat SUV |
| Seating layout | 2+2+2 |
| Seating capacity | 6 |
| Curb weight (kg) | 2530 |
| GVW (kg) | 3030 |
| Fuel tank (L) | 60 |

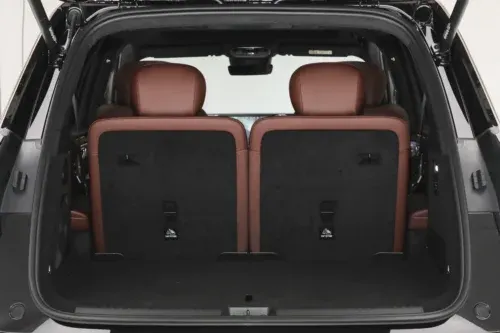

| Boot volume (L) | 328 (seated) – 2171 (extended) |
| Drag coefficient | 0.285 (60+ aero optimizations) |
| Ground clearance (mm) | 172 |
| Powertrain | |
| Powertrain form | Plug-in Hybrid |
| Engine | 1.5T dedicated hybrid engine |
| Displacement (mL) | 1499 |
| Engine power (Ps) | 163 |
| Engine power (kW) | @5000 rpm |
| Engine torque (N·m) | @2500-3500 rpm |
| Engine thermal efficiency | 47.26% |
| Fuel | 92# or above |
| Motor type | Permanent magnet synchronous |
| Motor count | Triple motor (front+rear, P3+dual P4 distributed 4WD) |
| Front motor power (kW) | 180 |
| Rear motor power (kW) | 340 |
| Motor power (kW) | 520 |
| Motor torque (N·m) | 910 |
| Combined power (kW) | 640 |
| Combined torque (N·m) | 1165 |
| Transmission | 3DHT Evo dedicated hybrid transmission |
| Shifter | Column shifter |
| Drive | Front-engine 4WD (electric 4WD) |
| 0-100 km/h (s) | 4.5 |
| Top speed (km/h) | 210 |
| Battery & Charging | |
| Battery type | LFP (Shen Dun battery) |
| Cell brand | CATL |
| Battery capacity (kWh) | 41.46 |
| CLTC EV range (km) | 210 |
| WLTC EV range (km) | 170 |
| CLTC combined range (km) | 1300 |
| DC fast charge | 0.25 h (30%–80%, approx. 15 min) |
| AC charge | approx. 6 h |
| Power consumption | 22.9 |
| CLTC fuel consumption | 5.5 |
| WLTC fuel consumption | 6.25 |
| V2L | Yes (max 6 kW) |
| Chassis & Wheels | |
| Front suspension | Double-wishbone independent |
| Rear suspension | Five-link independent |
| Adaptive suspension | Magic-carpet intelligent suspension |
| CCD damper | ● |
| Air suspension | Dual-chamber closed air suspension (F 80mm, R 95mm travel) |
| AI digital chassis | Lotus-tuned |
| Waltz-style turn | ● |
| Blow-out stability control | ● |
| Moose test | 83 km/h |
| Steering assist | Electric power assist |
| Body structure | Monocoque |
| Brakes F/R | Ventilated disc |
| Parking brake | Electronic parking brake |
| Tyre specification | 265/45 R21 (21-inch exclusive six-pointed star wheel) |
| Wheel | 21-inch exclusive six-pointed star alloy wheel |
| Exterior | |
| Exterior colors | Exclusive Midnight Black + Gilded Gold two-tone (gold roof/mirrors/cladding) + optional Sky Isle Blue, etc. |
| Front light bar | Galaxy Ripples front full-width light w/ aurora-blue ADAS indicator |

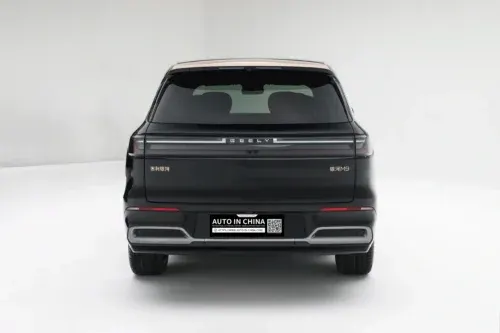

| Tail lamp | Rising Sun tail lamp |
| AGS | Active grille shutter |
| Power tailgate | Power tailgate with memory |
| Panoramic roof | Fixed panoramic glass roof (optional starry sky panoramic roof) |
| Cockpit & Smart | |

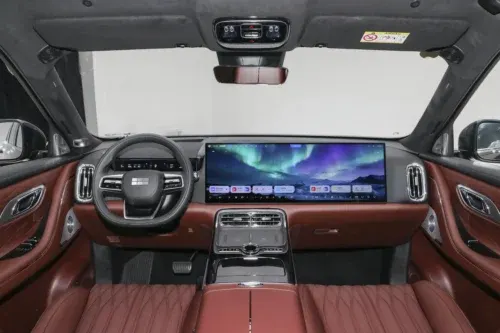

| Center display | 30-inch 6K integrated sky screen |
| Instrument cluster | 12.66-inch digital instrument cluster |
| 2nd-row display | 17.3-inch 3K overhead screen |
| AR-HUD | 32-inch AR head-up display |
| Infotainment | Flyme Auto 2.3 (Qualcomm Snapdragon 8295P) |
| AI BOX | Industry-first AI BOX on NVIDIA DRIVE, 200 TOPS AI, on-device 7B LLM |
| Voice assistant | 6-zone voice (end-to-end AI + flowing memory AI LLM) |
| Recognition | fingerprint recognition |
| Phone connectivity | Carlink |
| Smart control ring | Optional (health monitor + cockpit link + 2nd-row air gesture) |
| Wireless charging | Dual 50W air-cooled wireless charging |
| USB charging | 60W front + 27W rear |
| Audio | 37-speaker audio system |
| Ambient lighting | 256-color active ambient lighting |
| Vehicle refrigerator | 9.1L smart cool/warm refrigerator (−6℃—50℃) |
| Climate control | 3-zone auto + rear independent |
| Interior colors | Exclusive Nebula Red (top-grain leather w/ diamond stitching; Star River Wave door trim; suede-like soft-cloud headliner) |
| Seating & Comfort | |
| Upholstery | Top-grain bovine leather, exclusive diamond stitching & single-piece cutting |

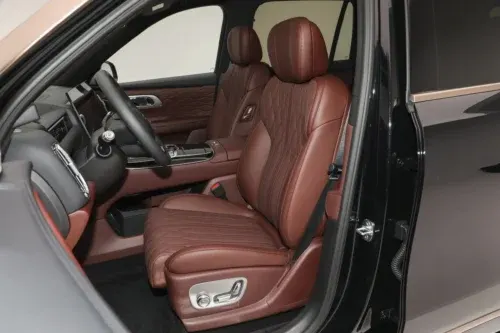

| Front seats | Power adjust + vent + heat + massage + memory |

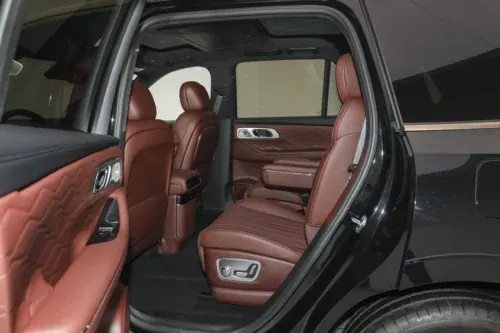

| 2nd-row seats | Power adjust + vent + heat + massage + folding table |
| 3rd-row seats | Power adjust + heat |
| One-touch seating | One-touch 8-mode adjustment |
| Steering wheel heating | Full-ring heated steering wheel |
| Rear privacy glass | Multi-layer acoustic glass (front & rear) |
| ADAS | |
| ADAS system | Qianli Haohan H7 (G-ASD) (first Galaxy model equipped with H7) |
| ADAS chip | NVIDIA Thor-U |
| Compute | 700 TOPS |
| Sensors | 27 sensors: 1 lidar + 11 cams + 12 ultrasonic + 3 mmWave |
| ADAS level | L2+ (mapless City NOA + door-to-door navigation + cross-floor auto exit + auto gate pass + ultra-narrow/dead-end auto parking + remote park-in) |
| Full-speed ACC | ● |
| Lane centering | ● |
| Auto parking | ● |
| Remote/Memory parking | ● |
| Transparent chassis 540° | ● |
| Active safety plus | TOA tailgate opening alert |
| Safety | |
| Airbags | 9 (incl. front center & front/rear curtain) |
| Body | Star Armor cage body (81.2% high-strength steel; 40.4% ≥1000MPa) |
| Max material strength | 2000 MPa |
| Body torsional rigidity | 32500 N·m/deg |
| ABS/EBD/BA/TCS/ESP | ● |
| AEB/FCW | ● |
| LDW | ● |
| Fatigue/DMS | ● |
| TPMS | ● |
| ISOFIX | ● |
| Shen Dun battery safety | ● |
| DVR/Sentry | ● |
