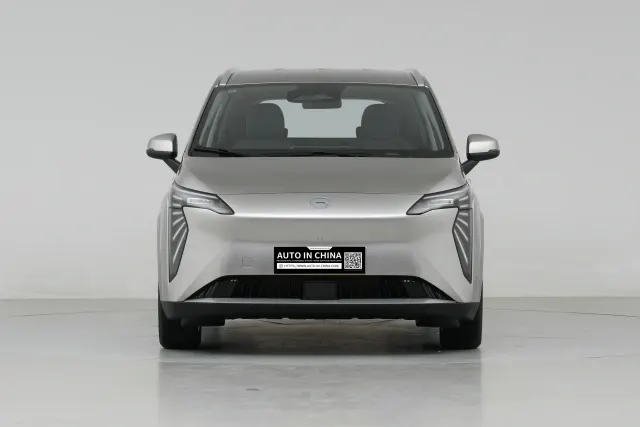

AION Y 2025 Plus 510 Zhixiang Edition

About this vehicle

Vehicle overview

Car price alone

The listed price is for the vehicle only; for optional configurations Brand new vehicles – factory direct; no 180-day wait

Configuration details

Full configuration

Scroll across to compare the listed editions. Confirm the exact edition and equipment with your quotation.

Basic Parameters
Model Name	AION Y 2025 Plus 510 Zhixiang Edition
Manufacturer	GAC Aion
Class	Compact SUV
Energy Type	Battery Electric (BEV)
Emission Standard	—
Body Type	5-Door 5-Seat SUV
Length x Width x Height (mm)	4535×1870×1650
Wheelbase (mm)	2750
Front / Rear Track (mm)	1600 / 1600
Doors / Seats	5 / 5
Cargo Volume (L)	405
Loaded Ground Clearance (mm)	150
Approach / Departure Angle (°)	18 / 27
Max Gradability (%)	30
Min. Turning Radius (m)	5.5
Top Speed (km/h)	130
Fuel Equivalent (L/100km)	1.5
Curb Weight (kg)	1655
Gross Vehicle Weight (kg)	2180
Electric Motor
Front Motor Brand	Suzhou Inovance
Front Motor Model	TZ180XS130
Motor Type	Permanent Magnet / Synchronous
Number of Drive Motors	Single Motor
Motor Layout	Front-Mounted
Drivetrain	Front-Engine, Front-Wheel Drive (FF)
Total Motor Power (kW)	100
Total Motor Power (Ps)	136
Total Motor Torque (N·m)	176
Transmission	Single-Speed (Fixed Gear Ratio)
Battery / Charging
Battery Type	LFP (Ammo Battery 2.0)
Cell Brand	GAC Generations / Yinpai Battery
Battery Capacity (kWh)	58.4
CLTC Range (km)	510
Power Consumption (kWh/100km)	12.9
Fast Charging	●
Fast Charge Time (30%—80%)	Approx. 30 min
Battery Cooling	Liquid Cooling
Battery Low-Temperature Heating	● (Battery Preheating)
Heat Pump (Vehicle Thermal Management)	●
External Discharge (V2L)	● (220V V2L, Max Approx. 3.3 kW)
Slow Charge Port Location	Right Front Fender
Fast Charge Port Location	Left Front Fender
Chassis & Steering
Front Suspension	MacPherson Strut (Independent)
Rear Suspension	Torsion Beam (Semi-Independent)
Steering Assist	Electric Power Steering
Body Structure	Unibody
Auto Hold	●
Hill-Start Assist	●
Hill Descent Control	—
Drive Mode Selection	Sport / Eco / Standard Comfort
Energy Recovery System	●
Wheels & Brakes
Front / Rear Brakes	Ventilated Disc / SolidDisc
Parking Brake	Electronic Parking Brake
Front / RearTire Size	215/55 R17
Wheel Material	Aluminum Alloy (17 in.)
Spare Tire	Non-Full-Size (Tire Repair Kit, Optional on Some Trims)
Safety Features
Driver / Passenger Airbags	● / ●
Front Side Airbags	—
Front & Rear Curtain Airbags	— / —
Knee Airbag	—
Center Airbag	—
Tire Pressure Monitoring	● (Tire Pressure Alert)
Seatbelt Unfastened Reminder	● (All Seats)
ISOFIX Child Seat Anchors	●
ABS Antilock	●
Brake Force Distribution (EBD)	●
Brake Assist (EBA)	●
Traction Control (ASR)	●
Stability Control (ESC)	●
Low-Speed Moving Warning	●
Driving Assistance / Handling
Driving Assistance Level	L0 (Basic Assistance)
Cruise Control	●
Adaptive Cruise Control	—
Full-Speed Adaptive Cruise (ACC)	—
Traffic Sign Recognition	—
Automatic Emergency Braking	—
Front Collision Warning	—
Blind Spot Detection (BSD)	—
Door Open Warning (DOW)	—
Driver Fatigue Alert	—
Reversing Image	●
360° Surround View	—
Transparent Chassis / 540° View	—
Front / Rear Parking Sensors	— / ●
Automatic Parking	—
Driver Assistance System	GAC GSD Intelligent Driving Assistance
Ultrasonic Sensor Count	3 (Parking)
Exterior Camera Count	1 (Rear Reversing)
Exterior / Anti-theft
Sunroof Type	—(No Sunroof)
Roof Rails	●
Flush Door Handles	Conventional Door Handles (Non-Flush)
Central Door Locking	●
Remote Key	●
Keyless Start	●
Keyless Entry	● (Front Row)
Remote Engine Start	●
Battery Preheating	●
Power Tailgate	—
Headlight Type	LED (Including LED Daytime Running Lights)
Automatic Headlights	●
Headlight Height Adjustment	●
Follow-Me-Home Headlights	●
Adaptive High Beams	—
Interior / Steering Wheel
Steering Wheel Material	Leather
Steering Wheel Adjustment	Manual Tilt Adjustment
Multifunction Steering Wheel	●
Gear Shift Type	Electronic Column Shifter
Trip Computer Display	● (Color)
Full LCD Instrument Cluster	●
Digital Instrument Cluster Size	10.25 in.
Interior Mirror Functions	Manual Anti-Glare
Seats
Seat Material	Fabric
Driver Seat Adjustment	Fore/Aft, Backrest, Height Adjustment (2-Way)
Passenger Seat Adjustment	Fore/Aft, Backrest Adjustment
Driver / Passenger Power Adjustment	—
Driver Seat Heating	—
Driver Seat Ventilation	—
Seat Massage	—
Rear Seat Folding	Split-Folding
Front / Rear Center Armrest	Front ● / Rear ——
Rear Cup Holder	—
Smart Connectivity / Multimedia
Center Display Size	14.6 in. (Touchscreen LCD)
Infotainment System	ADiGO
Infotainment Chip	Qualcomm Snapdragon 6125
System RAM (GB)	8
System Storage (GB)	16
Satellite Navigation	● (AutoNavi Maps)
Real-Time Traffic Display	●
Mobile Connectivity / Mapping	Huawei HiCar / Carlink
Connected Services	●
4G / 5G Network	4G
OTA Updates	●(FOTA)
Wi—Fi Hotspot	●
Voice Recognition Control	● (Media / Navigation / Telephone / Climate)
Zoned Voice Wake-Up Recognition	● (Dual-Zone)
Continuous Voice Recognition	● (What-You-See-Is-What-You-Say)
Bluetooth / In-Car Telephone	●
USB/Type—C Port	USB+Type-C (Front 1 / Rear 1)
Wireless Phone Charging	—
Number of Speakers	6 Speakers
Mobile App Remote Control	● (Doors / Charging / Climate / Status / Location)
Climate / Comfort
Climate Control Type	Automatic Climate Control
Rear Air Vents	●
Cabin PM2.5 Filtration	●
Remarks
Exterior Colors	Polar White, Chosen Silver, Holographic Silver, Night Shadow Black, Starry Blue, Warm Velvet Gold (Subject to Official)

Grouped specifications

Vehicle specifications

Choose a section, then select its heading to view the listed specifications.

Specifications may vary by edition. Confirm the exact trim and equipment with your quotation.

Vehicle identity

Body type: SUV; 5-Door 5-Seat SUV; Unibody
Color: Multiple colors
Brand: GAC Aion
Vehicle class: Compact SUV

Dimensions & space

Overall dimensions: 4535×1870×1650 mm
Wheelbase: 2750 mm
Cargo volume: 405 L

Powertrain

Engine: Permanent Magnet / Synchronous
Drive type: Front-Engine, Front-Wheel Drive (FF)
Motor power: 100 kW; 136 Ps
Transmission: Single-Speed (Fixed Gear Ratio)

Battery, range & charging

Energy / fuel type: BEV; Battery Electric (BEV)
Emission standard as listed: —
Battery type: LFP (Ammo Battery 2.0)
Battery capacity: 58.4 kWh
CLTC range: 510 km

Chassis & performance

Top speed: 130 km/h
Curb weight: 1655 kg
Gross vehicle weight: 2180 kg
Front suspension: MacPherson Strut (Independent)
Rear suspension: Torsion Beam (Semi-Independent)

Safety & comfort equipment

Original equipment description: FWD
