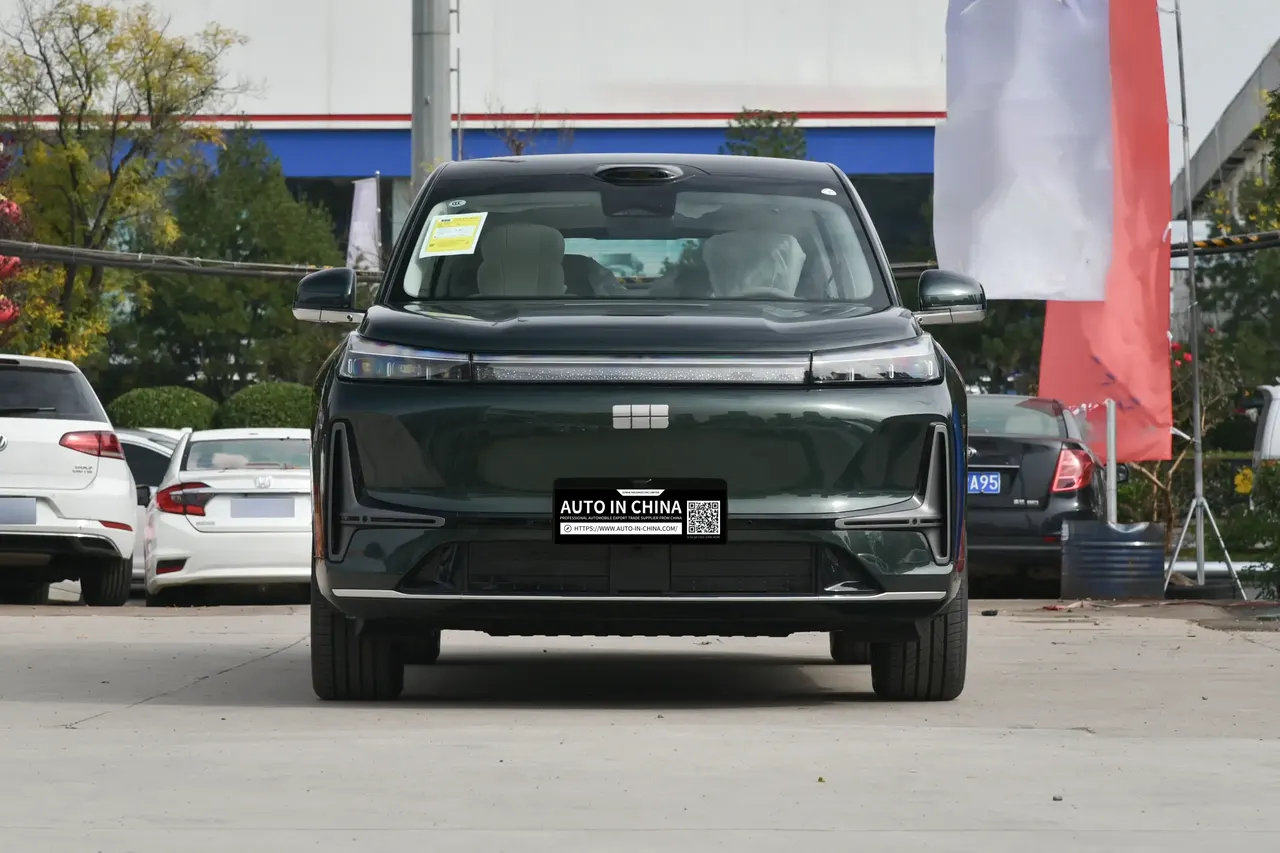

Geely Galaxy M9 230km 2WD Zhihang (Smart-Navi) Edition

1 / 7

7 source photos · Select a thumbnail to view. Photos may show different colors or configurations.

Ready stock records

Geely Galaxy M9 230km 2WD Zhihang (Smart-Navi) Edition

Original listed vehicle price27958

Historical listing value. Confirm currency, current export price, options and delivery terms with your quotation.

Original price information

Original listed price: 27958

Source values retained for reference. Zero or placeholder values are not a selling price.

Transmission: 3DHT Evo e-drive
Seats: 6

Request export quotation ↗View full specifications

Vehicle specification, options and delivery terms are confirmed with your quotation.

About this vehicle

Vehicle overview

Car price alone

The listed price is for the vehicle only; for optional configurations Brand new vehicles – factory direct; no 180-day wait

Configuration details

Full original configuration

Complete source tables retained. Scroll across for multi-edition tables; confirm the exact edition with your quotation.

I. Model information
Model name	230km 2WD Zhihang (Smart-Navi) Edition
Manufacturer	Geely Automobile
Class	Mid-to-large SUV
Energy type	Plug-in Hybrid (PHEV)
Body structure	5-door 6-seat SUV
Drivetrain	2WD (front-mounted P3 single motor)
Emission standard	China VI-b
II. Vehicle dimensions & parameters
L x W x H (mm)	5205 x 1999 x 1800
Wheelbase (mm)	3030
Curb weight (kg)	2400
GVW (kg)	2900
Fuel tank capacity (L)	60

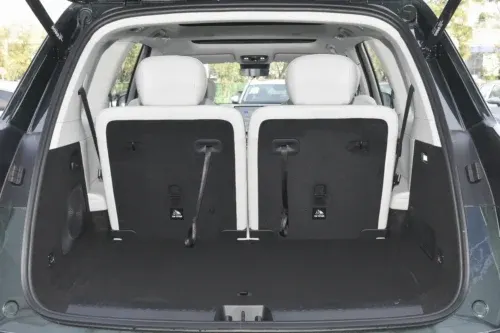

Trunk volume (L)	328 (6 seats up); expandable to 2171
Seating layout	2+2+2 (6 seats)
Seating capacity	6
Drag coefficient (Cd)	0.285
0-100 km/h (s)	7.3
Top speed (km/h)	200
III. Powertrain
Powertrain	PHEV (NordThor EM-P AI hybrid)
Engine	1.5T dedicated hybrid engine
Engine max power (Ps/kW)	163 / 120
Engine max torque (N·m)	255
Engine max thermal efficiency	47.26%
Fuel grade	92# or above
Transmission	3DHT Evo e-drive
System max power (kW)	300
System max torque (N·m)	605
Motor layout	Front-mounted (P3)
Shifter	Column shifter
IV. Battery & charging
Traction battery capacity (kWh)	41.46
Battery type	LFP (Shield battery, CATL)
CLTC pure-electric range (km)	230
CLTC combined range (km)	1505
30%-80% DC fast charge (min)	15
V2L discharge	6 kW (AC charging 6.6 kW)
WLTC fuel cons. (L/100km)	5.6
CLTC fuel cons. (L/100km)	4.8
V. Chassis & wheels
Front suspension	Double-wishbone independent
Rear suspension	Five-link independent
CCD CV dampers	●
Tire specification	255/50 R20
Wheels	20-inch alloy wheels
Drive modes	Smart/EV/Performance/Range-extender
VI. Exterior
Front full-width lamp	Star-Ripple front lamp (380 micro LEDs)
Tail lamp	Sunrise tail lamp (436 LEDs)
Matrix ADB headlamp	Optional
Active grille shutter (AGS)	●
Panoramic roof	Dual panoramic glass roof
Tailgate kick sensor	●
Exterior colors	Shining Silver, Sky Isle Blue, Pine Green, Midnight Black, Cloud Gray, Horizon White

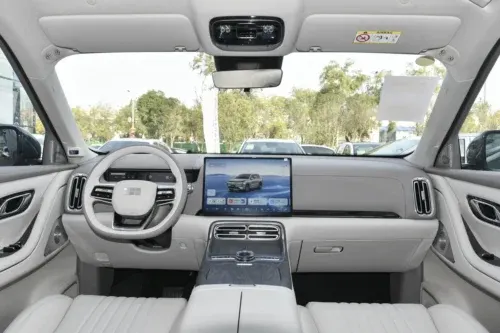

VII. Cockpit & intelligence
Cockpit chip	Qualcomm Snapdragon 8295P
Infotainment OS	Flyme Auto 2
Center display	15.4-inch 3K center display
Instrument cluster	12.66-inch HD LCD
AR-HUD	—
2nd-row display	Optional (standard on Explorer/Pilot)
Wireless charging	50W cooled wireless charging x2 (front)
Heated steering wheel	●
AI cockpit	AI BOX (7B on-device LLM) + AI Agent

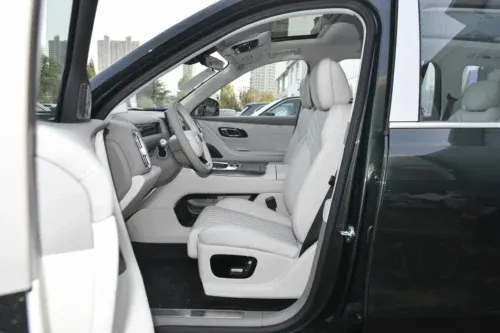

VIII. Seating & comfort
Upholstery	Genuine leather
1st-row heat/vent	Graphene heat/vent ●
1st-row massage	Driver 16-pt / Passenger 10-pt shiatsu
Driver adaptive lumbar/bolster	●
Passenger leg rest/recline	●

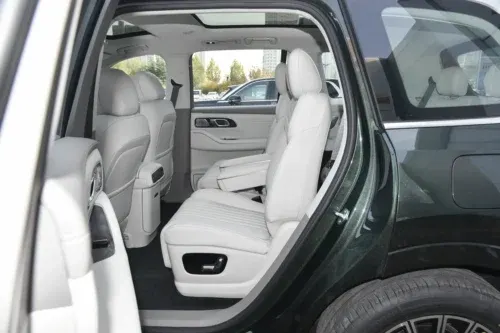

2nd-row heat/vent/massage	Heat / vent / 10-pt massage
2nd-row tray table	●
3rd-row heat	●
9.1L refrigerator (-6 to 50 C)	●
220V outlet	●
IX. AI advanced driver assistance
ADAS solution	Qianli Haohan H5 (LiDAR; Urban/Highway NOA, D2D valet, APA/RPA/HPA, active magic-carpet preview)
ADAS chip	NVIDIA Orin-Y
Sensors	1 LiDAR + 3 mmWave + 11 HD cameras + 12 ultrasonic
Urban NOA	●
Highway NOA	●
ACC	●
ICC	●
Parking assist (APA/RPA/HPA)	● APA/RPA/HPA
D2D valet assist	●
AEB	●
ELKA	●
AES	●
Sentry mode	●
X. Safety
Airbags	9 (incl. dual-chamber far-side)
Front frontal/side airbags	● / ●
Roof-mounted side curtain	●
2nd-row side airbags	●
Dual-chamber far-side airbag	●
Occupant left-behind monitor	●
Body structure	Star-Arm cage body (torsional rigidity 32500 N·m/deg)

Grouped specifications

Vehicle specifications

Choose a section, then select its heading to expand. All source values remain available.

Organized original source values, not manufacturer verification. Multiple values may describe different editions; confirm the exact trim before quotation.

Vehicle identity

Body type: SUV; 5-door 6-seat SUV
Color: Multiple colors
Brand: Geely Automobile
Vehicle class: Mid-to-large SUV

Dimensions & space

Wheelbase: 3030 mm
Cargo volume: 328 (6 seats up); expandable to 2171 L
Seats: 6

Powertrain

Engine: 1.5T dedicated hybrid engine
Drive type: 2WD (front-mounted P3 single motor)
Transmission: 3DHT Evo e-drive

Battery, range & charging

Energy / fuel type: PHEV; Plug-in Hybrid (PHEV)
Emission standard as listed: China VI-b
Fuel tank capacity: 60 L
Battery type: LFP (Shield battery, CATL)

Chassis & performance

Curb weight: 2400 kg
Acceleration as listed: 7.3 s
Top speed: 200 km/h
Front suspension: Double-wishbone independent
Rear suspension: Five-link independent

Safety & comfort equipment

Original equipment description: FWD
