Description
| BYD HAN EV | 506KM Premium | 605KM Premium | 715KM Flagship |
| Basic Info | |||
| Manufacturer | BYD | ||
| level | Medium and large cars | ||
| Energy type | pure electric | ||
| Availability | 2024.02 | ||
| electric motor | Pure electric 204 horsepower | Pure electric 228 horsepower | Pure electric 245 horsepower |
| Pure electric range (km) CLTC | 506 | 605 | 715 |
| Charging time (hours) | Fast charging 0.42 hours, slow charging 8.6 hours | Fast charge 0.42 hours Slow charge 10.3 hours | Fast charge 0.5 hours Slow charge 12.2 hours |
| Fast charging capacity (%) | 30-80 | ||
| Maximum power(kW) | 150(204Ps) | 168(228Ps) | 180(245Ps) |
| Maximum torque (N·m) | 310 | 350 | 350 |
| gearbox | Electric vehicle single speed gearbox | ||
| Length x width x height (mm) | 4995x1910x1495 | ||
| Body structure | 4-door, 5-seat sedan | ||
| Maximum speed (km/h) | 185 | ||
| Official acceleration time to 100 kilometers (s) | 7.9 | ||
| Electricity consumption per 100 kilometers (kWh/100km) | 13.2kWh | 13.3kWh | 14.9kWh |
| Body | |||
| Length(mm) | 4995 | ||
| Width(mm) | 1910 | ||
| Height(mm) | 1495 | ||
| Wheelbase(mm) | 2920 | ||
| Front wheel track (mm) | 1640 | ||
| Rear wheelbase (mm) | 1640 | ||
| Body structure | Sedan | ||
| Number of doors (number) | 4 | ||
| Car door opening method | swing door | ||
| Number of seats (seats) | 5 | ||
| Curb weight (kg) | 1920 | 2000 | 2100 |
| Full load mass (kg) | 2295 | 2375 | 2475 |
| electric motor | |||
| Motor description | Pure electric 204 horsepower | Pure electric 228 horsepower | Pure electric 245 horsepower |
| Motor type | Permanent magnet/AC/synchronous | ||
| Total motor power (kW) | 150 | 168 | 180 |
| Total motor horsepower (Ps) | 204 | 228 | 245 |
| Total torque of the motor (N·m) | 310 | 350 | 350 |
| Maximum power of front electric motor (kW) | 150 | 168 | 180 |
| Maximum torque of front electric motor (N·m) | 310 | 350 | 350 |
| Number of drive motors | single motor | ||
| Motor layout | frontload | ||
| Charging batteries | |||
| Battery Type | Lithium iron phosphate battery | ||
| Battery Features Technology | blade battery | ||
| Battery brand | BYD | ||
| Battery capacity (kWh) | 60.48 | 72 | 85.4 |
| Battery energy density (Wh/kg) | 150 | ||
| Charging batteries | Fast charging 0.42 hours, slow charging 8.6 hours | Fast charge 0.42 hours Slow charge 10.3 hours |
Fast charge 0.5 hours Slow charge 12.2 hours |
| ●Fast charging interface | ●Fast charging interface | ●Fast charging interface | |
| Maximum fast charging power (kw) | 110 | 130 | 155 |
| Fast charging port location | Right fuel tank | ||
| Slow charging interface location | Right fuel tank | ||
| Battery temperature management system | ●Low temperature heating | ||
| ●liquid cooling | |||
| Maximum fast charging power (kw) | 110 | 130 | 155 |
| Fast charging port location | Right fuel tank | ||
| Slow charging interface location | Right fuel tank | ||
| Battery temperature management system | ●Low temperature heating | ||
| ●liquid cooling | |||
| Single pedal mode | ●Standard configuration | ●Standard configuration | ●Standard configuration |
| VTOL mobile power station functions | ●Standard configuration | ●Standard configuration | ●Standard configuration |
| Maximum external discharge power (kW) | 3.3 | 6.6 | 6.6 |
| Minimum allowable value of external discharge power (%) | 15 | 15 | 15 |
| gearbox | |||
| Gearbox description | Electric vehicle single speed gearbox | ||
| Number of gears | 1 | ||
| Gearbox type | fixed ratio gearbox | ||
| Chassis/Steering | |||
| Drive mode | Front wheel drive | ||
| front suspension form | MacPherson independent suspension | ||
| Rear suspension type | Multi-link independent suspension | ||
| steering type | Electric power assist | ||
| Body structure | Load-bearing | ||
| wheels/brakes | |||
| Front brake type | Ventilated disc | ||
| rear brake type | solid disc | ||
| Parking brake type | Electronic parking | ||
| Front tire size | 245/45 R19 | ||
| Rear tire size | 245/45 R19 | ||
| active safety | |||
| ABS anti-lock braking system | ●Standard configuration | ||
| Braking force distribution (EBD/CBC, etc.) | ●Standard configuration | ||
| Brake assist (EBA/BA, etc.) | ●Standard configuration | ||
| Traction control (TCS/ASR, etc.) | ●Standard configuration | ||
| Body stability system (ESP/DSC, etc.) | ●Standard configuration | ||
| Active safety warning system | ●Lane Departure Warning | ||
| ●forward collision warning | |||
| ●Rear Collision Warning | |||
| ●Reversing side warning | |||
| ●DOW opening warning | |||
| Active braking | ●Standard configuration | ||
| Parallel assistance | ●Standard configuration | ||
| Lane Keeping Assist System | ●Standard configuration | ||
| Lane centering | ●Standard configuration | ||
| Road traffic sign recognition | ●Standard configuration | ||
| passive safety | |||
| front airbag | ●Driver’s seat | ||
| ●Passenger seat | |||
| side airbag | ●Front Row | ||
| ●Back row | |||
| side curtain airbags | ●Standard configuration | ||
| Front knee airbag | ●Driver’s seat | ||
| Seat belt not fastened reminder | ●Standard configuration | ||
| tire pressure monitoring system | ●Tire pressure display | ||
| Child seat interface (ISOFIX) | ●Standard configuration | ||
| passive pedestrian protection | ●Standard configuration | ||
| Auxiliary/control configuration | |||
| Parking radar | ●forward | ||
| ●back | |||
| Driving assistance images | ●Reverse image | ||
| ●Car side blind spot image | |||
| ●360°panoramic image | |||
| ●transparent image | |||
| cruise system | ●cruise control | ||
| ●adaptive cruise | |||
| ●Full speed adaptive cruise | |||
| Assisted driving level | ●L2 level | ||
| Automatic parking (AUTOHOLD) | ●Standard configuration | ||
| Hill Ascent Assist (HAC) | ●Standard configuration | ||
| Variable suspension adjustment | ●Soft and Hard | ||
| Driving mode selection | ●sports | ||
| ●Snow | |||
| ●ECO/Economy | |||
| ●Standard comfort | |||
| brake energy recovery system | ●Standard configuration | ||
| Low speed driving warning sound | ●Standard configuration | ||
| external placement | |||
| Skylight type | ●Panoramic sunroof can be opened | ||
| Active closing air intake grille | ●Standard configuration | ||
| Aluminum alloy wheels | ●Standard configuration | ||
| Hidden door handle | ●Standard configuration | ||
| Internal configuration | |||
| Steering wheel material | ●cortex | ||
| steering wheel adjustment | ●Up and down + front and back | ||
| Steering wheel functions | ●Multifunctional control | ||
| ●heating | |||
| Driving computer screen | ●color | ||
| LCD instrument style | ●All LCD | ||
| LCD instrument size (inch) | ●12.3 | ||
| Comfort/anti-theft configuration | |||
| Electric tailgate | ●Standard configuration | ||
| Electric rear tailgate position memory | ●Standard configuration | ||
| Central locking in car | ●Standard configuration | ||
| Remote key type | ●Smart remote key | ||
| ●mobile phone bluetooth key | |||
| ●NFC/RFID key | |||
| keyless entry | ●Front Row | ||
| Keyless start | ●Standard configuration | ||
| remote start | ●Standard configuration | ||
| remote control mobile vehicle | ●Standard configuration | ||
| Heads-up display system (HUD) | ●Standard configuration | ●Standard configuration | |
| Built-in driving recorder | ●Standard configuration | ||
| Mobile phone wireless charging | ●Standard configuration | ||
| Maximum power of mobile phone wireless charging (W) | 50 | ||
| 110V/220V/230V power socket | ●Standard configuration | ||

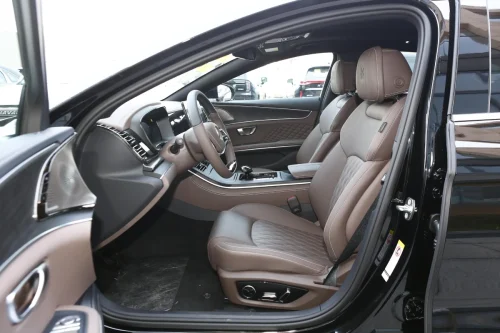

| Seat configuration | |||
| seat material | ●imitation leather | ●imitation leather | ●Genuine Leather |
| Seat leather style | ●Nappa leather | ||
| Seat electric adjustment | ●Driver’s seat | ||
| ●Passenger seat | |||
| Overall adjustment of driver’s seat | ●Move forward and backward | ||
| ●Backrest angle | |||
| ●Height adjustment | |||
| Driver’s seat partial adjustment | ●headrest | ||
| ●waist | |||
| Passenger seat overall adjustment | ●Move forward and backward | ||
| ●Height adjustment | |||
| ●Backrest angle | |||
| Passenger seat partial adjustment | ●headrest | ||
| ●waist | |||
| Front seat functions | ●heating | ||
| ●ventilation | |||
| ●Memory (main driver) | |||
| ●massage | ●massage | ||
| Boss button | ●Standard configuration | ●Standard configuration | ●Standard configuration |
| Front/rear armrests | ●Front Row | ●Front Row | ●Front Row |
| ●Back row | ●Back row | ●Back row | |
| Rear cup holder | ●Standard configuration | ●Standard configuration | ●Standard configuration |
| Intelligent Internet | |||

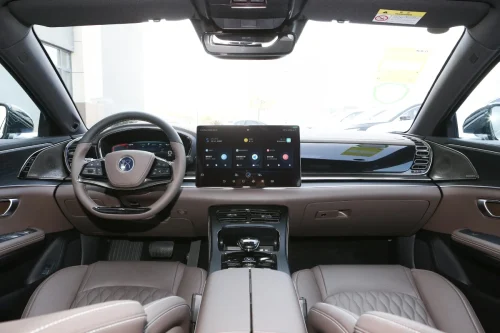

| Central control screen size (inches) | ●15.6 | ||
| Rotatable/movable central control screen | ●Standard configuration | ||
| GPS navigation system | ●Standard configuration | ||
| Navigation traffic information display | ●Standard configuration | ||
| Roadside assistance | ●Standard configuration | ||
| Bluetooth/car phone | ●Standard configuration | ||
| Mobile Internet Mapping | ●Hikaar | ||
| Internet of Vehicles | ●Standard configuration | ||
| 4G/5G network | ●5G | ||
| OTA upgrade | ●Standard configuration | ||
| Voice recognition control system | ●Standard configuration | ||
| Voice wake-up-free function | ●Standard configuration | ||
| Voice wake-up recognition function by region | ●main driver | ●main driver | ●main driver |
| ●co-pilot | ●co-pilot | ●co-pilot | |
| ●second row | ●second row | ●second row | |
| continuous speech recognition | ●Standard configuration | ||
| It can be said that it is visible | ●Standard configuration | ||
| Voice assistant wake word | Hello Xiaodi | ||
| Wi-Fi hotspot | ●Standard configuration | ||
| Media entertainment | |||
| app Store | ●Standard configuration | ||
| multimedia interface | ●SD card slot | ||
| ●USB/Type-C | |||
| Relaxation mode | ●Standard configuration | ||
| Karaoke function | ●Standard configuration | ||
| Car and machine easter eggs | ●Standard configuration | ||
| audio brand | ●Dynaudio | ●Dynaudio | |
| Number of speakers (pieces) | ●8 | ●12 | ●12 |
| Lighting configuration | |||
| Low beam lights | ●LED | ||
| High beam | ●LED | ||
| daytime running lights | ●Standard configuration | ||
| Adaptive high and low beam | ●Standard configuration | ||
| automatic headlights | ●Standard configuration | ||
| Turn assist light | ●Standard configuration | ||
| Headlight height adjustment | ●Standard configuration | ||
| Car interior ambient light | ●multicolor | ||
| Delayed turn off of headlights | ●Standard configuration | ||
| Headlight rain and fog mode | ●Standard configuration | ||
| glass/rear view mirror | |||
| electric windows | ●Front Row | ||
| ●Back row | |||
| One-click lifting and lowering of windows | ●Full Vehicle | ||
| Window anti-pinch function | ●Standard configuration | ●Standard configuration | ●Standard configuration |
| Exterior rearview mirror function | ●Electric adjustment | ||
| ●heating | |||
| ●memory | |||
| ●Automatically tilt down when reversing | |||
| Car vanity mirror | ●Main driving seat + lighting | ||
| ●Passenger seat + illuminated | |||
| Rear privacy glass | ●Standard configuration | ||
| Rain-sensing wipers | ●Standard configuration | ||
| Multilayer soundproof glass | ●Front Row | ||
| Air conditioner/refrigerator | |||
| Air conditioning control method | ●automatic | ||
| Independent air conditioning in the rear | ●Standard configuration | ||
| Rear air outlet | ●Standard configuration | ||
| Temperature zone control | ●Dual zone air conditioning | ||
| Temperature zone control | ●Dual zone air conditioning | ||
| Car air purifier | ●Standard configuration | ||
| In-car PM2.5 filter device | ●Standard configuration | ||
| negative ion generator | ●Standard configuration | ||
| Car fragrance device | ●Standard configuration | ●Standard configuration | |
| Intelligent configuration | |||
| Assisted driving operating system | ●InPilot | ●InPilot | ●InPilot |
| Vehicle intelligent system | ●DiLink | ●DiLink | ●DiLink |
| Vehicle smart chip | ●D100 | ●D100 | ●D100 |
| Vehicle system memory (GB) | ●8 | ●8 | ●8 |
| Vehicle system storage (GB) | ●128 | ●128 | ●128 |
| Mobile App remote control | ●Digital Key | ||
| ●vehicle monitoring | |||
| ●Charging management | |||
| ●remote control | |||
| ●Service appointment | |||
| heat pump management system | ●Standard configuration | ||
| Maximum forward detection distance (m) | ●160 | ||
| Number of external cameras | ●6 | ||
| Number of cameras in the car (number) | ●1 | ●1 | ●2 |
| Number of ultrasonic radars (units) | ●8 | ||
| Millimeter wave radar quantity (units) | ●3 | ||
Reviews
There are no reviews yet.
