| Deepal L07 | 230Max Extended Range Edition | 230Max Qiankun Intelligent Driving ADS SE Edition | 300Max Extended Range Edition | 300Max Qiankun Intelligent Driving ADS SE Edition | 530Max Pure Electric Version | 530Max Qiankun Intelligent Driving ADS SE Edition |
| Basic Information | ||||||
| Manufacturer | Deepal Car | Deepal Car | Deepal Car | Deepal Car | Deepal Car | Deepal Car |
| level | Mid-size car | Mid-size car | Mid-size car | Mid-size car | Mid-size car | Mid-size car |
| Energy Type | Extended Range | Extended Range | Extended Range | Extended Range | Pure Electric | Pure Electric |
| Availability | 2024.09 | 2024.09 | 2024.09 | 2024.09 | 2024.09 | 2024.09 |
| Electric Motor | Extended range 218 horsepower | Extended range 218 horsepower | Extended range 258 hp | Extended range 258 hp | Pure electric 252 horsepower | Pure electric 252 horsepower |
| Pure electric range (km) Ministry of Industry and Information Technology | 170 | 170 | 220 | 220 | 530 | 530 |
| Pure electric range (km) WLTC | 170 | 170 | 220 | 220 | ||
| Pure electric range (km) CLTC | 230 | 230 | 300 | 300 | 530 | 530 |
| Charging time (hours) | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours | Fast charge 0.25 hours |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Maximum power (kW) | 160(218Ps) | 160(218Ps) | 190(258Ps) | 190(258Ps) | 185(252Ps) | 185(252Ps) |
| Maximum torque (N路m) | 320 | 320 | 320 | 320 | 310 | 310 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length x width x height (mm) | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 | 4875x1890x1480 |
| Body structure | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback |
| Maximum speed (km/h) | 175 | 175 | 175 | 175 | 170 | 170 |
| Official 0-100km/h acceleration time (s) | 7.5 | 7.5 | 6.8 | 6.8 | 6.2 | 6.2 |
| WLTC comprehensive fuel consumption (L/100km) | 0.73 | 0.73 | ||||
| Power consumption per 100 km (kWh/100km) | 15.5kWh | 15.5kWh | 12.4kWh | 12.4kWh | ||
| Vehicle warranty period | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km | 3 years or 120,000 km |
| Body | ||||||
| Length(mm) | 4875 | 4875 | 4875 | 4875 | 4875 | 4875 |
| Width(mm) | 1890 | 1890 | 1890 | 1890 | 1890 | 1890 |
| Height(mm) | 1480 | 1480 | 1480 | 1480 | 1480 | 1480 |
| Wheelbase(mm) | 2900 | 2900 | 2900 | 2900 | 2900 | 2900 |
| Front wheel track (mm) | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 |
| Rear track (mm) | 1630 | 1630 | 1630 | 1630 | 1630 | 1630 |
| Body structure | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback | Hatchback |
| Number of doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Door opening method | Swing door | Swing door | Swing door | Swing door | Swing door | Swing door |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Curb weight(kg) | 1865 | 1865 | 1920 | 1920 | 1855 | 1855 |
| Full load mass (kg) | 2295 | 2295 | 2335 | 2335 | 2270 | 2270 |
| Fuel tank capacity (L) | 45 | 45 | 45 | 45 | ||
| Front luggage compartment volume (L) | 70 | 70 | ||||
| Luggage compartment volume (L) | 473-1180 | 473-1180 | 473-1180 | 473-1180 | 543-1250 | 543-1250 |
| Drag coefficient (Cd) | 0.215 | 0.215 | ||||
| engine | ||||||
| Engine Model | JL469Q1 | JL469Q1 | JL469Q1 | JL469Q1 | ||
| Displacement (mL) | 1497 | 1497 | 1497 | 1497 | ||
| Displacement(L) | 1.5 | 1.5 | 1.5 | 1.5 | ||
| Air intake form | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated | ||
| Engine layout | Sideways | Sideways | Sideways | Sideways | ||
| Cylinder arrangement | L | L | L | L | ||
| Number of cylinders | 4 | 4 | 4 | 4 | ||
| Number of valves per cylinder | 4 | 4 | 4 | 4 | ||
| Valve mechanism | DOHC | DOHC | DOHC | DOHC | ||
| Maximum horsepower (Ps) | 98 | 98 | 98 | 98 | ||
| Maximum power (kW) | 72 | 72 | 72 | 72 | ||
| Maximum power speed (rpm) | 5600 | 5600 | 5600 | 5600 | ||
| Maximum torque (N路m) | 125 | 125 | 125 | 125 | ||
| Maximum torque speed (rpm) | 3000 | 3000 | 3000 | 3000 | ||
| Fuel form | Extended Range | Extended Range | Extended Range | Extended Range | Pure Electric | Pure Electric |
| Fuel grade | 92# | 92# | 92# | 92# | ||
| Oil supply method | Multi-point EFI | Multi-point EFI | Multi-point EFI | Multi-point EFI | ||
| Cylinder head material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | ||
| Cylinder material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | ||
| Environmental standards | National VI b | National VI b | National VI b | National VI b | ||
| Electric Motor | ||||||
| Motor Description | Extended range 218 horsepower | Extended range 218 horsepower | Extended range 258 hp | Extended range 258 hp | Pure electric 252 horsepower | Pure electric 252 horsepower |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 160 | 160 | 190 | 190 | 185 | 185 |
| Total motor horsepower (Ps) | 218 | 218 | 258 | 258 | 252 | 252 |
| Total torque of the motor (N路m) | 320 | 320 | 320 | 320 | 310 | 310 |
| Maximum power of rear motor (kW) | 160 | 160 | 190 | 190 | 185 | 185 |
| Maximum torque of rear motor (N路m) | 320 | 320 | 320 | 320 | 310 | 310 |
| Number of drive motors | Single motor | Single motor | Single motor | Single motor | Single motor | Single motor |
| Motor layout | Post | Post | Post | Post | Post | Post |

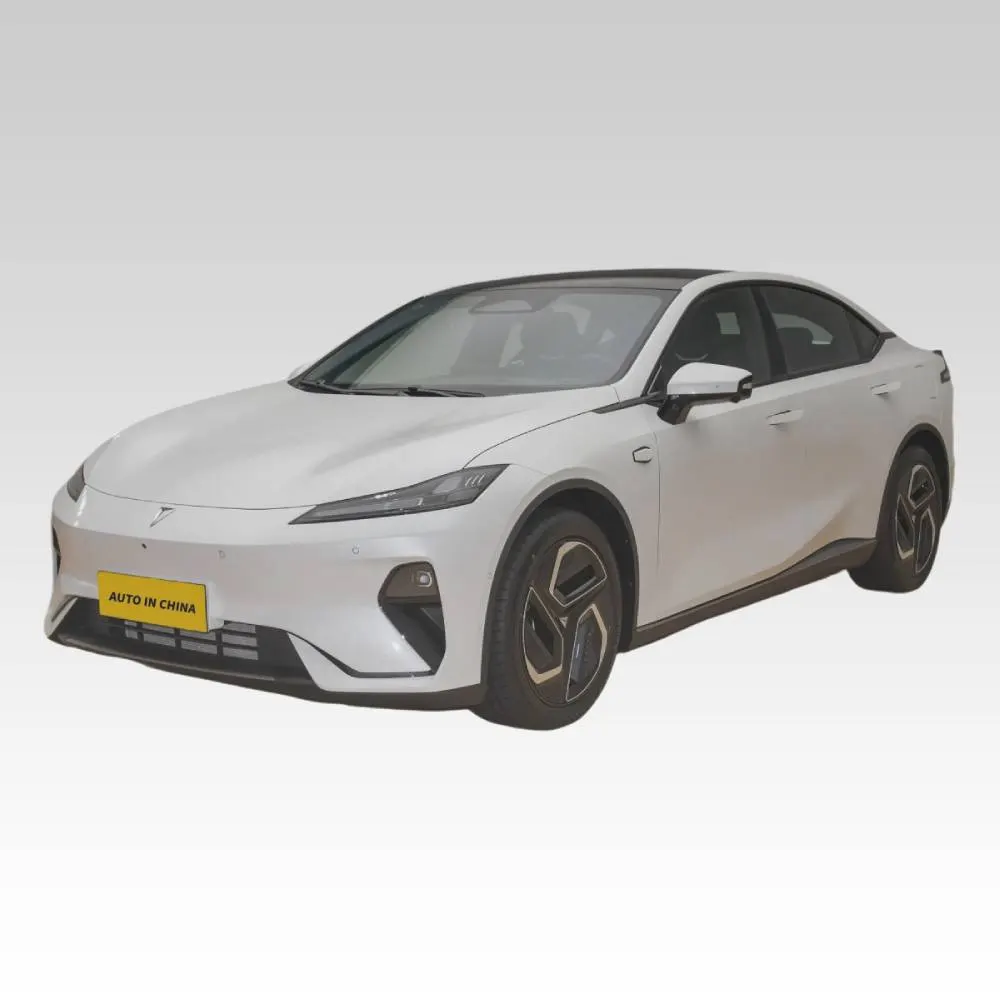

1 / 11 vehicle photos · Select a thumbnail to view. Photos may show different colors or configurations.
Product catalogue
2024 Deepal L07
230/300/530Max Edition Car Trader From China
Export quotationPrice on request
Contact us for the latest price, configuration and availability.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full configuration
Scroll across to compare the listed editions. Confirm the exact edition and equipment with your quotation.
Grouped specifications
Vehicle specifications
Choose a section, then select its heading to view the listed specifications.
Specifications may vary by edition. Confirm the exact trim and equipment with your quotation.
Specify your required edition and destination in your enquiry so our team can confirm the specifications.
Build your export quotation
Vehicle, destination, quantity and timing — start with your requirements.
