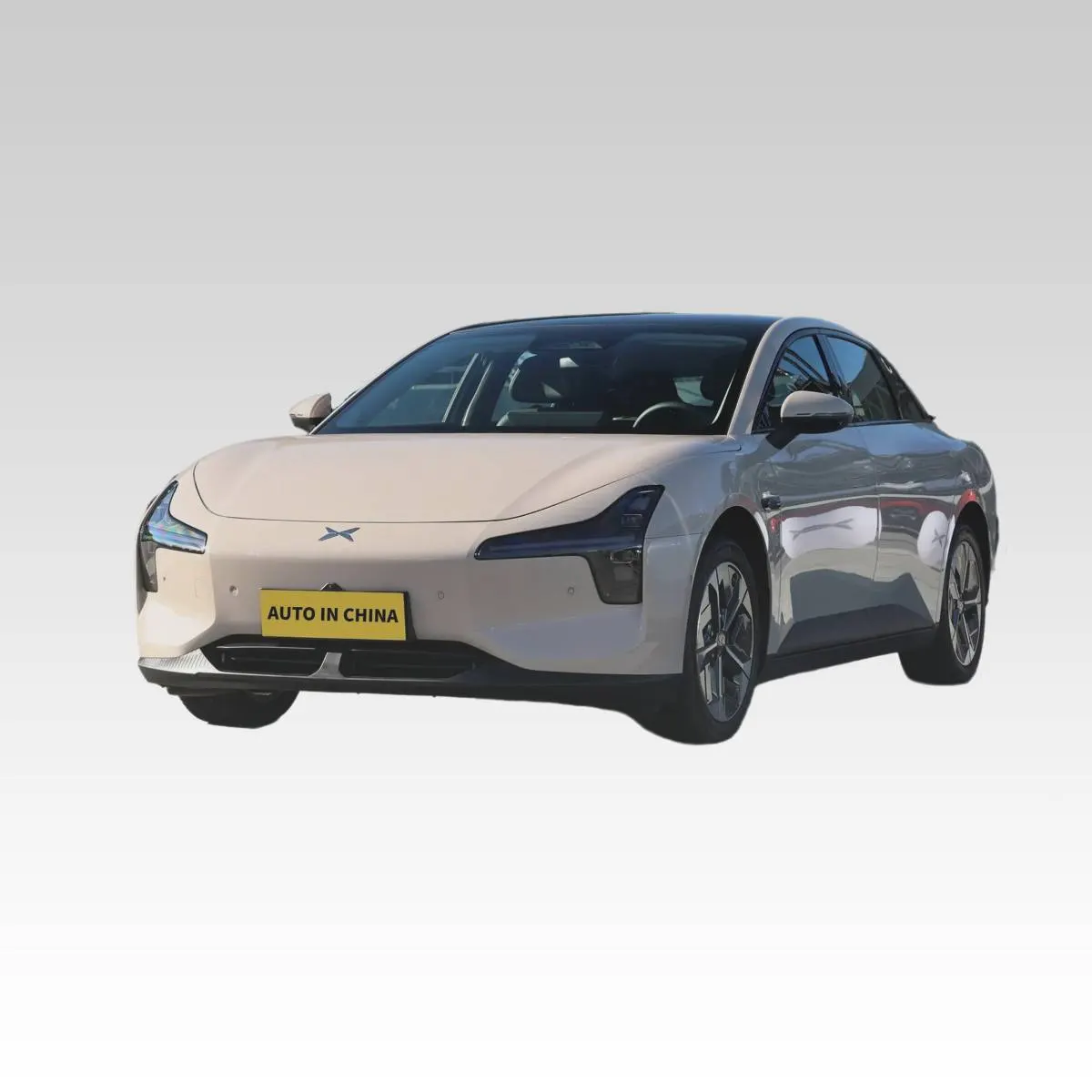

2024 Xpeng MONA M03 515 Long Range 620 580 Ultra-long-range version Car Trader From China
Contact us for the latest price, configuration and availability.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full configuration
Scroll across to compare the listed editions. Confirm the exact edition and equipment with your quotation.
| Xpeng MONA M03 | 515 Long Range Edition | 620 Ultra-long-range version | 580 Ultra-long-range Max version |
| Basic Information | |||
| Manufacturer | Xpeng Motors | Xpeng Motors | Xpeng Motors |
| level | Compact car | Compact car | Compact car |
| Energy Type | Pure Electric | Pure Electric | Pure Electric |
| Availability | 2024.08 | 2024.08 | 2024.08 |
| Electric Motor | Pure electric 190 horsepower | Pure electric 218 horsepower | Pure electric 218 horsepower |
| Pure electric range (km) Ministry of Industry and Information Technology | 515 | 620 | 580 |
| Pure electric range (km) CLTC | 515 | 620 | 580 |
| Charging time (hours) | Fast charge 0.43 hours | Fast charge 0.43 hours | Fast charge 0.43 hours |
| Fast charging capacity (%) | 30%-80% | 30%-80% | 30%-80% |
| Maximum power (kW) | 140(190Ps) | 160(218Ps) | 160(218Ps) |
| Maximum torque (N·m) | 225 | 250 | 250 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length x width x height (mm) | 4780x1896x1445 | 4780x1896x1445 | 4780x1896x1445 |
| Body structure | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback | 5-door 5-passenger hatchback |
| Maximum speed (km/h) | 155 | 155 | 155 |
| Official 0-100km/h acceleration time (s) | 7.8 | 7.4 | 7.4 |
| Power consumption per 100 km (kWh/100km) | 11.5kWh | 11.5kWh | 11.5kWh |
| Electric energy equivalent fuel consumption (L/100km) | 1.34 | 1.34 | 1.34 |
| Vehicle warranty period | 5 years or 120,000 km | 5 years or 120,000 km | 5 years or 120,000 km |
| Body | |||
| Length(mm) | 4780 | 4780 | 4780 |
| Width(mm) | 1896 | 1896 | 1896 |
| Height(mm) | 1445 | 1445 | 1445 |
| Wheelbase(mm) | 2815 | 2815 | 2815 |
| Front wheel track (mm) | 1628 | 1628 | 1628 |
| Rear track (mm) | 1628 | 1628 | 1628 |
| Body structure | Hatchback | Hatchback | Hatchback |
| Number of doors | 5 | 5 | 5 |
| Door opening method | Swing door | Swing door | Swing door |
| Number of seats | 5 | 5 | 5 |
| Curb weight(kg) | 1661 | 1739 | 1739 |
| Full load mass (kg) | 2036 | 2114 | 2114 |
| Luggage compartment volume (L) | 621-1603 | 621-1603 | 621-1603 |
| Minimum turning radius | 5.3m | 5.3m | 5.3m |
| Drag coefficient (Cd) | 0.194 | 0.194 | 0.194 |
| Electric Motor | |||
| Motor Description | Pure electric 190 horsepower | Pure electric 218 horsepower | Pure electric 218 horsepower |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 140 | 160 | 160 |
| Total motor horsepower (Ps) | 190 | 218 | 218 |
| Total torque of the motor (N·m) | 225 | 250 | 250 |
| Maximum power of front motor (kW) | 140 | 160 | 160 |
| Maximum torque of front motor (N·m) | 225 | 250 | 250 |
| Number of drive motors | Single motor | Single motor | Single motor |
| Motor layout | Pre | Pre | Pre |
Grouped specifications
Vehicle specifications
Choose a section, then select its heading to view the listed specifications.
Specifications may vary by edition. Confirm the exact trim and equipment with your quotation.
Specify your required edition and destination in your enquiry so our team can confirm the specifications.
