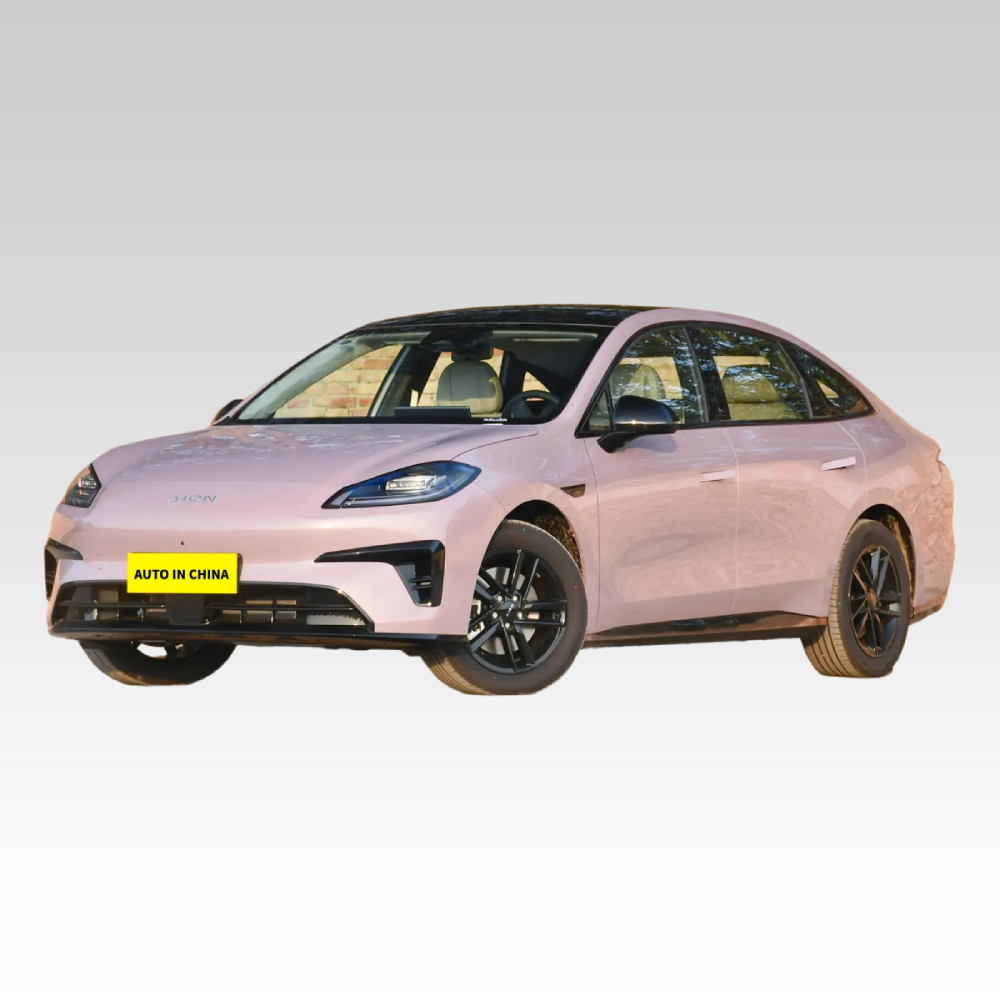

2025 AION RT China Car Dealer 520KM 650KM 204hp 224hp
Export quotationPrice on request
Contact us for the latest price, configuration and availability.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full original configuration
Complete source tables retained. Scroll across for multi-edition tables; confirm the exact edition with your quotation.
| Exterior | ||

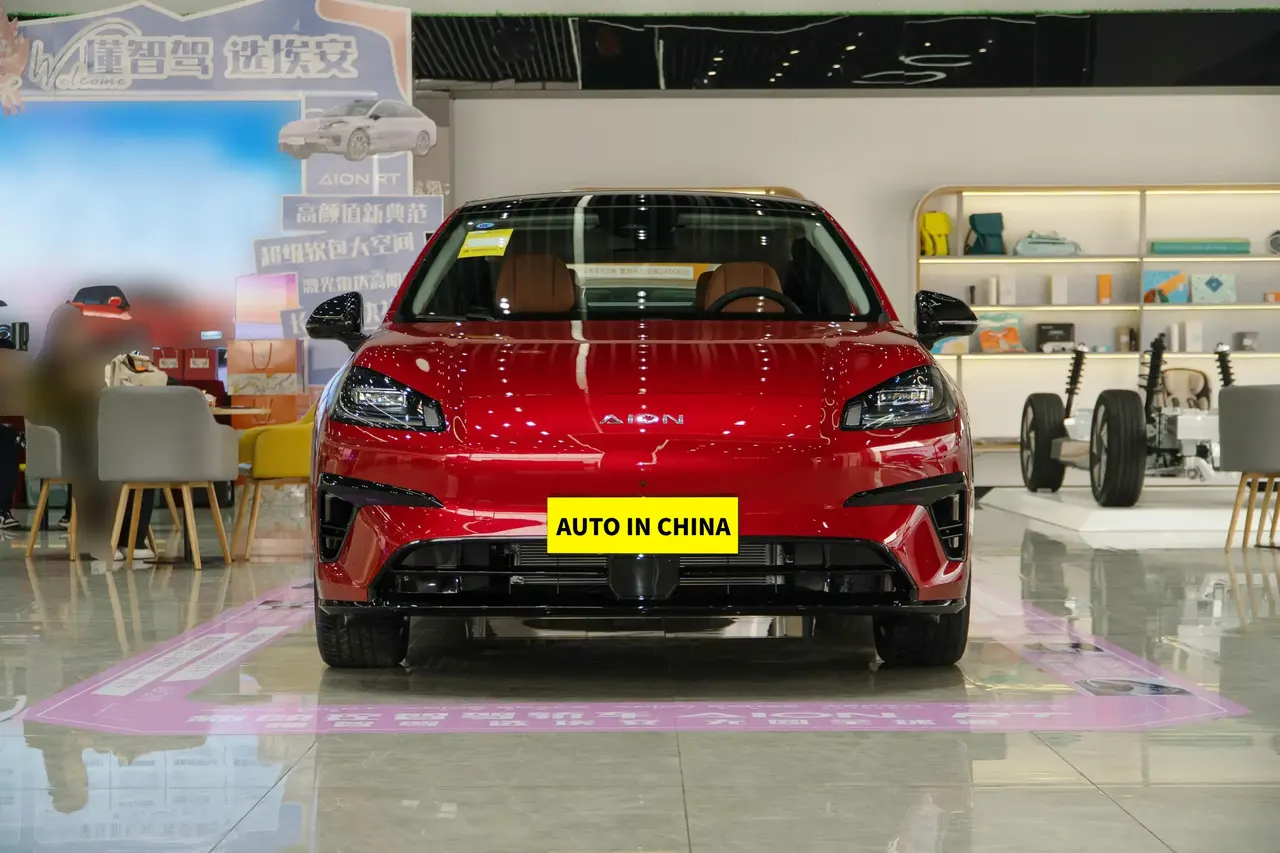

Corona Red |

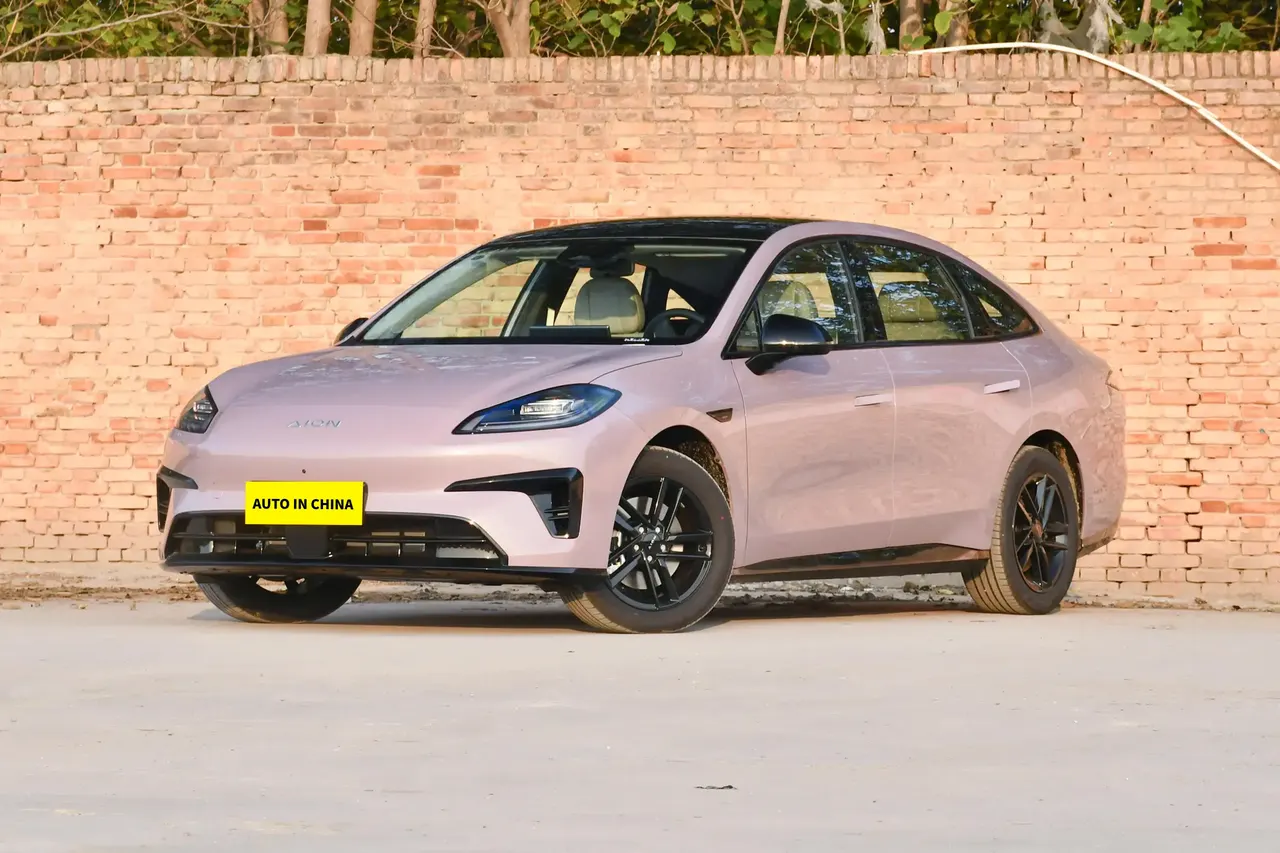

Crystal Purple |

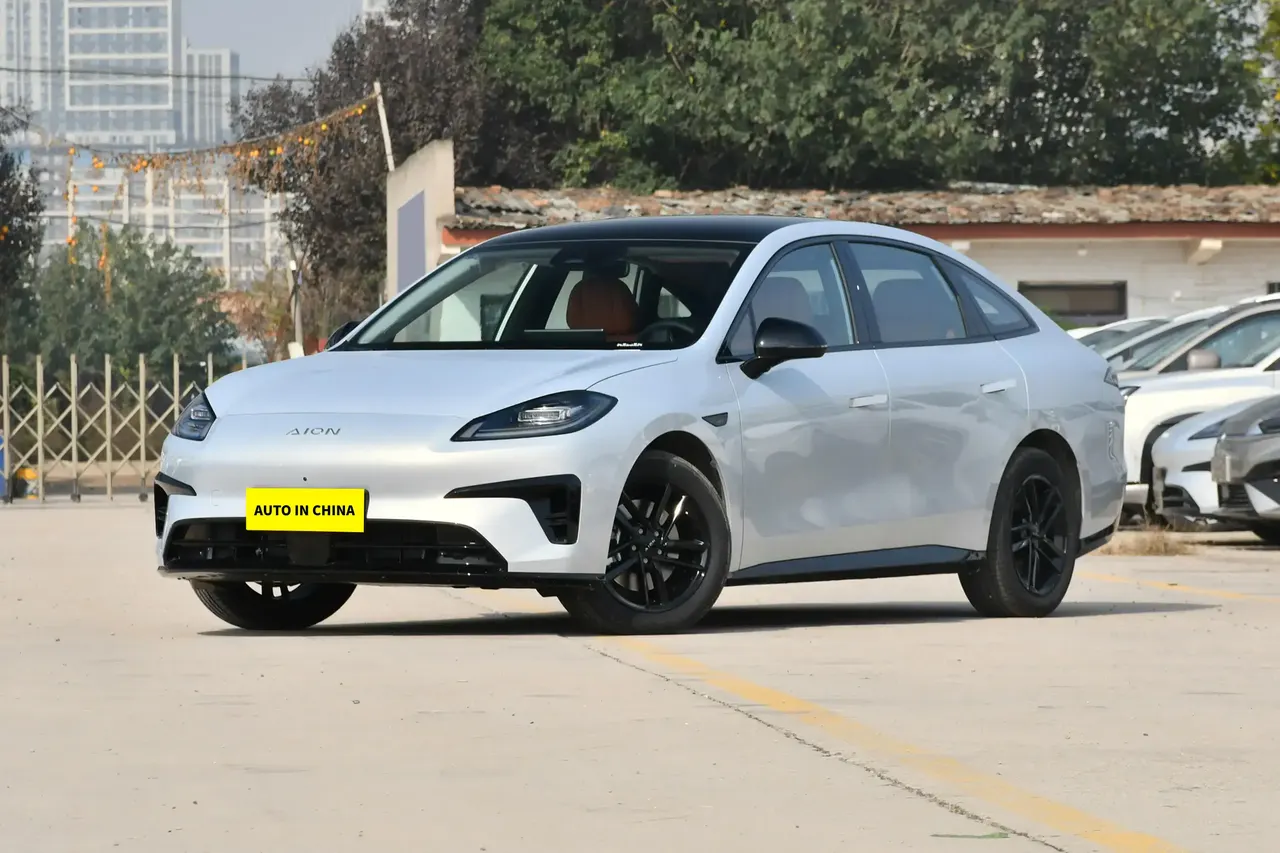

Holographic Silver |

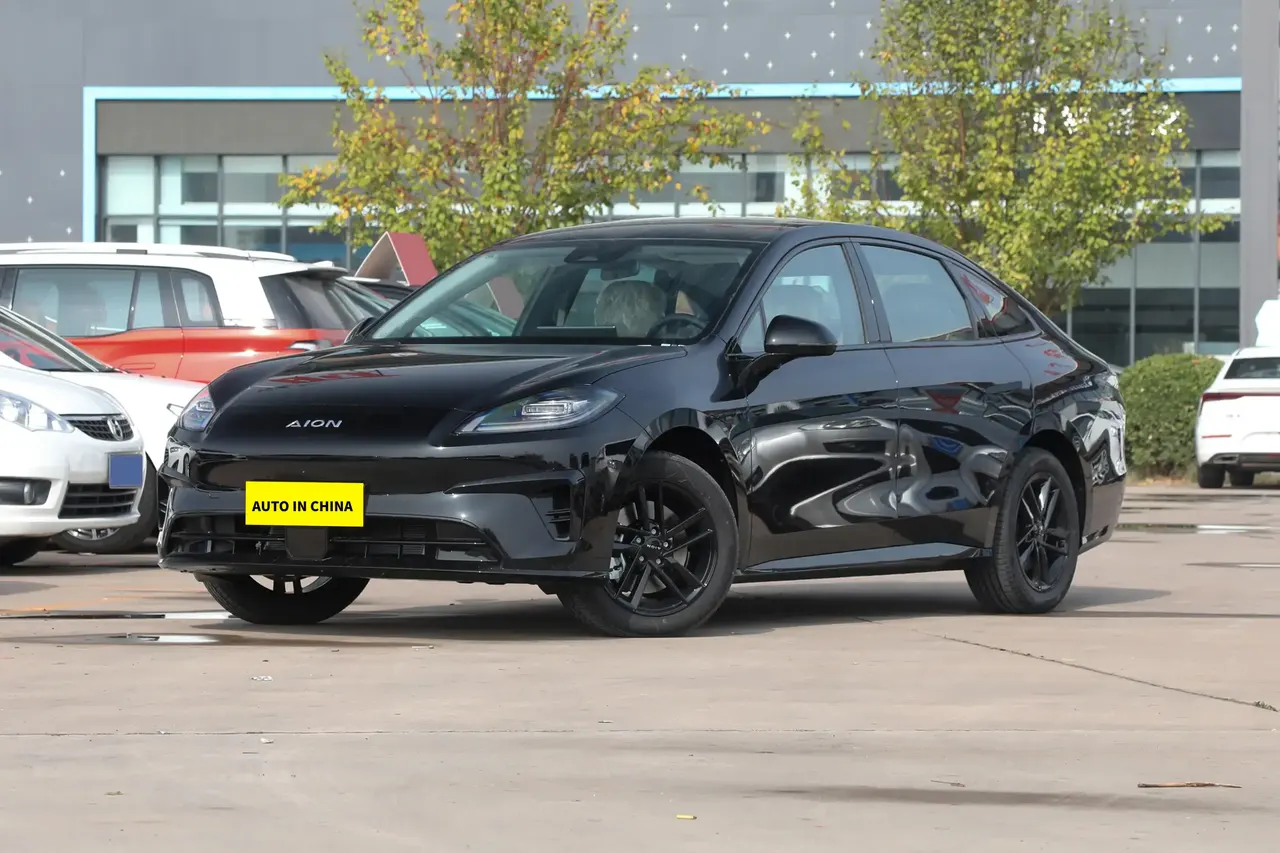

Night Shadow Black |

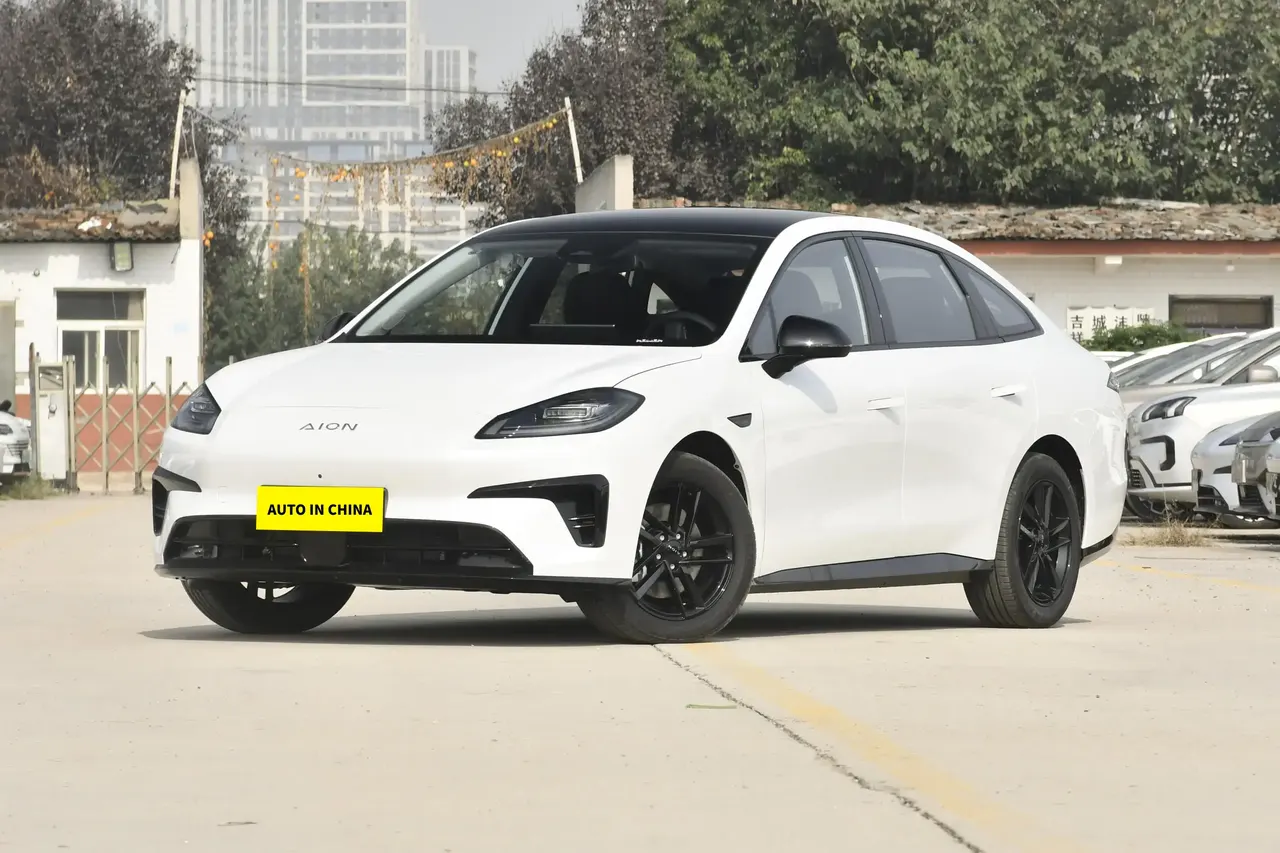

Polar White |

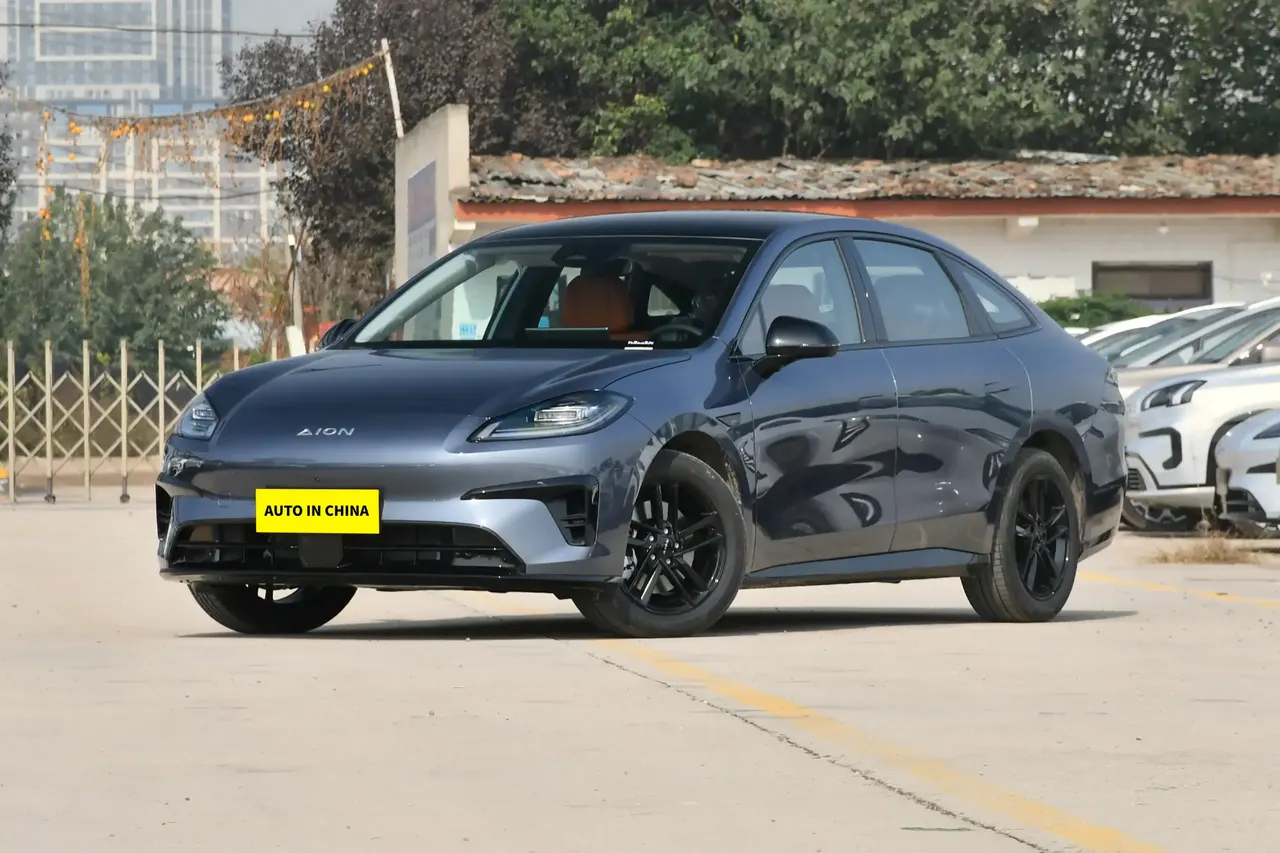

Sea Fluorescent Gray |

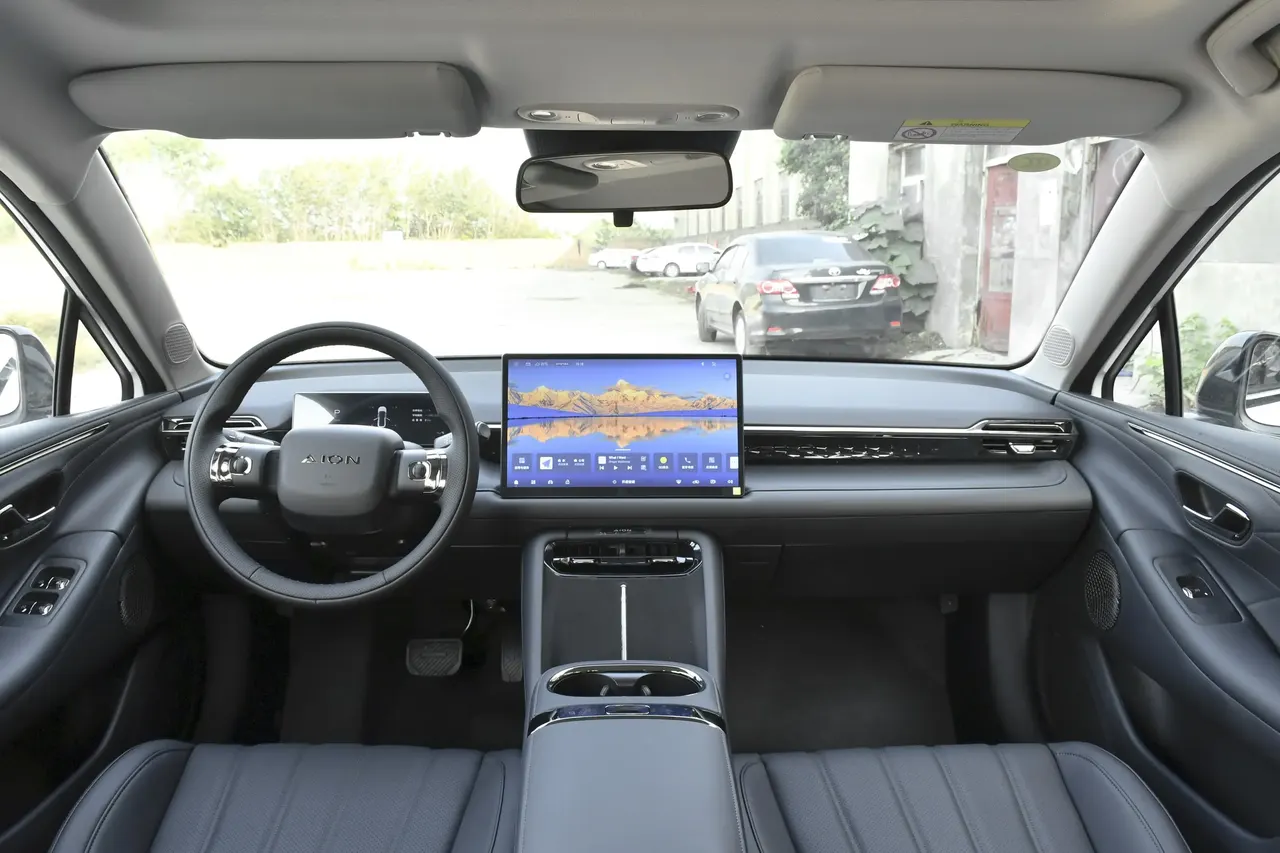

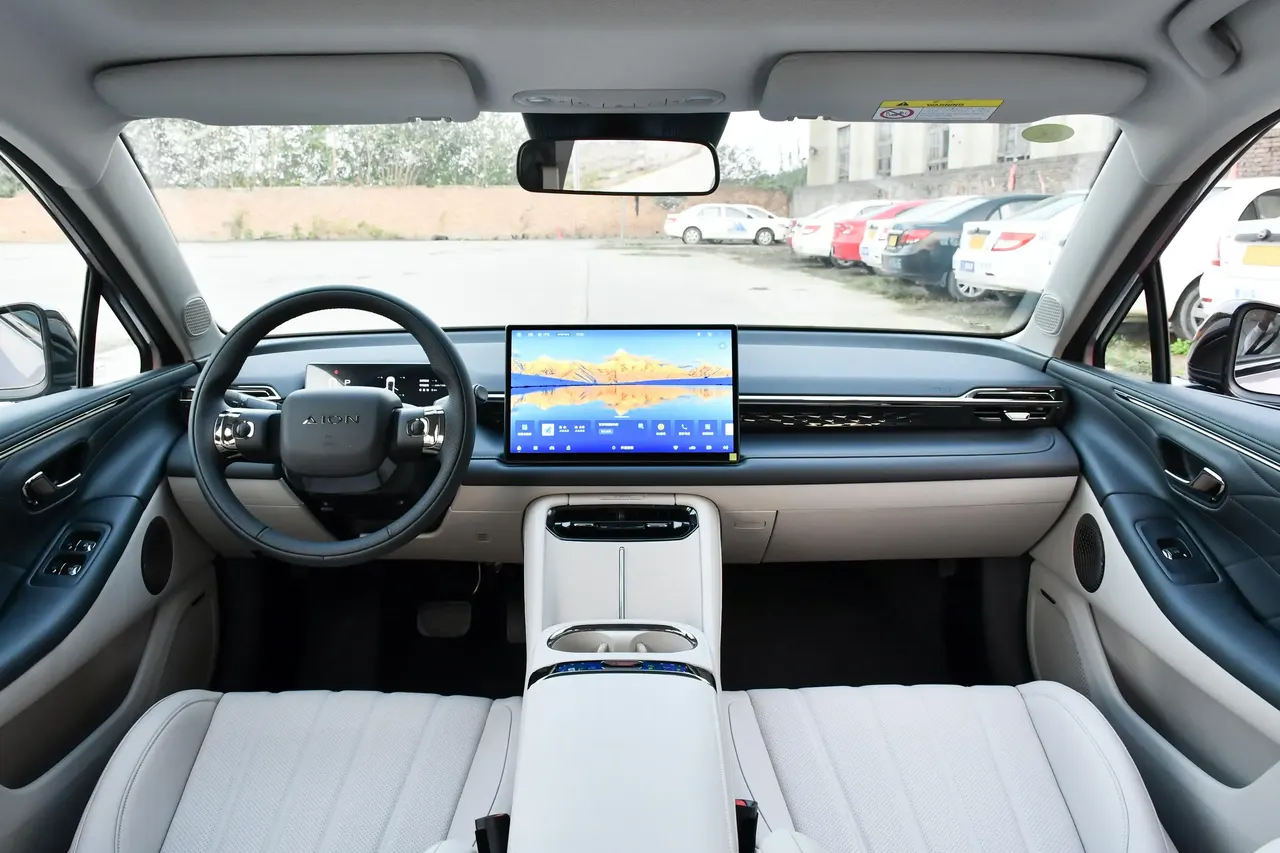

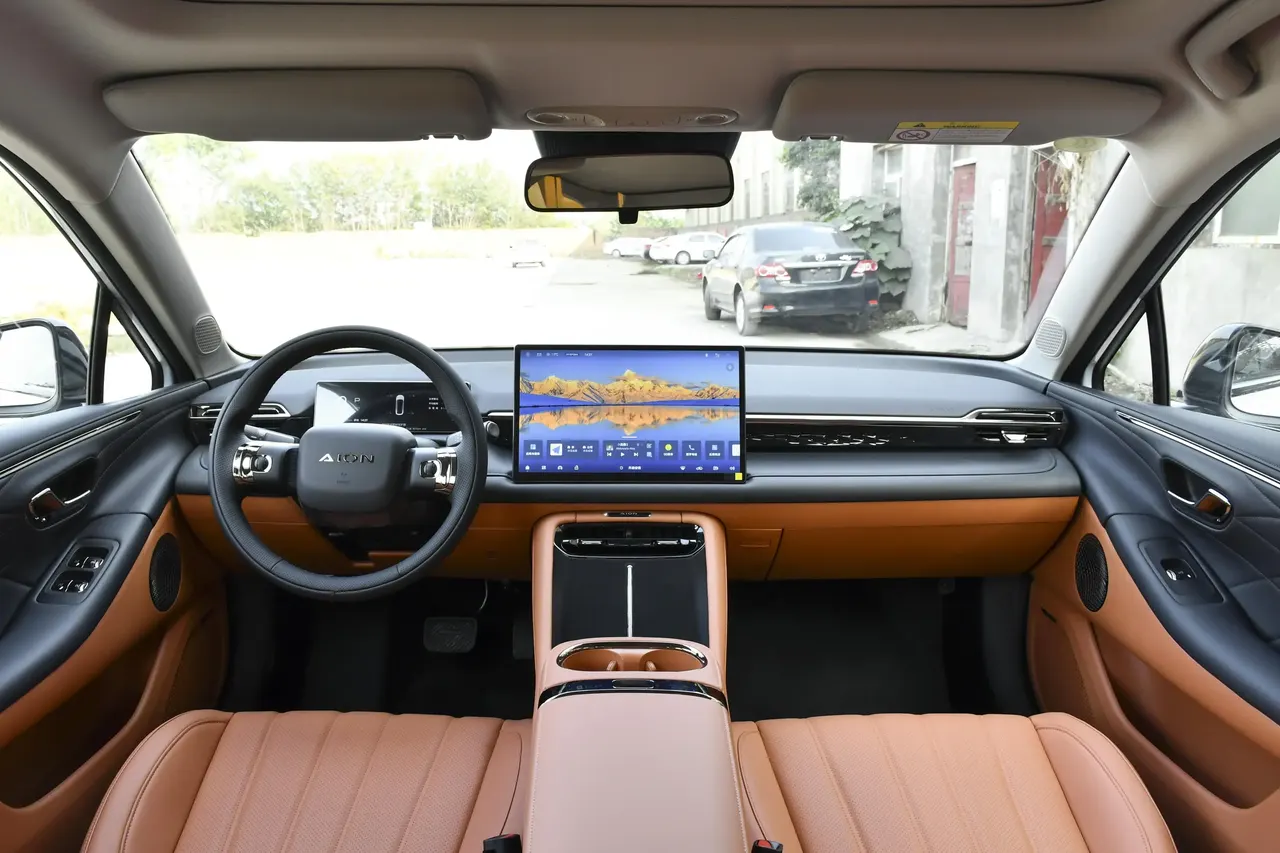

| Interior | ||
 |
 |
 |
| AION RT China Car Dealer | AION RT 2025 520 ZhiXiang Edition | AION RT 2025 520 Zhihao Edition | AION RT 2025 650 Zhihao Edition |
| Basic Information | |||
| Manufacturer | GAC Aion New Energy | GAC Aion New Energy | GAC Aion New Energy |
| level | Compact car | Compact car | Compact car |
| Energy Type | Pure Electric | Pure Electric | Pure Electric |
| Availability | 2024.11 | 2024.11 | 2024.11 |
| Electric Motor | Pure electric 204 horsepower | Pure electric 204 horsepower | Pure electric 224 horsepower |
| Pure electric range (km) Ministry of Industry and Information Technology | 520 | 520 | 650 |
| Pure electric range (km) CLTC | 520 | 520 | 650 |
| High voltage fast charging platform | ●400V | ●400V | ●400V |
| Charging time (hours) | Fast charge 0.3 hours | Fast charge 0.3 hours | Fast charge 0.3 hours |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| Maximum power (kW) | 150(204Ps) | 150(204Ps) | 165(224Ps) |
| Maximum torque (N·m) | 240 | 240 | 240 |
| Gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Length x width x height (mm) | 4865x1875x1520 | 4865x1875x1520 | 4865x1875x1520 |
| Body structure | 4-door 5-seater sedan | 4-door 5-seater sedan | 4-door 5-seater sedan |
| Maximum speed (km/h) | 163 | 163 | 163 |
| Official 0-100km/h acceleration time (s) | 7.5 | 7.5 | 7.7 |
| Power consumption per 100 km (kWh/100km) | 11.7kWh | 11.7kWh | 11.9kWh |
| Vehicle warranty period | 4 years or 150,000 km | 4 years or 150,000 km | 4 years or 150,000 km |
| Body | |||
| Length(mm) | 4865 | 4865 | 4865 |
| Width(mm) | 1875 | 1875 | 1875 |
| Height (mm) | 1520 | 1520 | 1520 |
| Wheelbase(mm) | 2775 | 2775 | 2775 |
| Front wheel track (mm) | 1602 | 1602 | 1602 |
| Rear wheelbase(mm) | 1606 | 1606 | 1606 |
| Body structure | Sedan | Sedan | Sedan |
| Number of doors | 4 | 4 | 4 |
| Door opening method | Swing door | Swing door | Swing door |
| Number of seats | 5 | 5 | 5 |
| Curb weight(kg) | 1670 | 1670 | 1750 |
| Full load mass (kg) | 2120 | 2120 | 2220 |
| Luggage compartment volume (L) | 540 | 540 | 540 |
| Electric Motor | |||
| Motor Description | Pure electric 204 horsepower | Pure electric 204 horsepower | Pure electric 224 horsepower |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 150 | 150 | 165 |
| Total motor horsepower (Ps) | 204 | 204 | 224 |
| Total torque of the motor (N·m) | 240 | 240 | 240 |
| Maximum power of front motor (kW) | 150 | 150 | 165 |
| Maximum torque of front motor (N·m) | 240 | 240 | 240 |
| Number of drive motors | Single motor | Single motor | Single motor |
| Motor layout | Pre | Pre | Pre |
| Battery/Charging | |||
| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Battery Feature Technology | Magazine Battery | Magazine Battery | Magazine Battery |
| Battery brand | CATL | CATL | CATL |
| Battery Pack Warranty | Lifetime warranty for the first owner (liability exemption clause is subject to official regulations) | Lifetime warranty for the first owner (liability exemption clause is subject to official regulations) | Lifetime warranty for the first owner (liability exemption clause is subject to official regulations) |
| Battery capacity (kWh) | 55.1 | 55.1 | 68.1 |
| Battery charging rate | ●3C | ●3C | ●3C |
| Battery Charging | Fast charge 0.3 hours | Fast charge 0.3 hours | Fast charge 0.3 hours |
| ●Fast charging port | ●Fast charging port | ●Fast charging port | |
| Maximum fast charging power (kw) | 150 | 150 | 150 |
| Fast charging port location | Right fender | Right fender | Right fender |
| Slow charging port location | Right fender | Right fender | Right fender |
| Battery Temperature Management System | ●Low temperature heating | ●Low temperature heating | ●Low temperature heating |
| ●Liquid Cooling | ●Liquid Cooling | ●Liquid Cooling | |
| VTOL mobile power station function | ●Standard | ●Standard | ●Standard |
| VTOL maximum external discharge power | 3.3kW | 3.3kW | 3.3kW |
| Gearbox | |||
| Gearbox Description | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox | Electric vehicle single speed gearbox |
| Number of gears | 1 | 1 | 1 |
| Gearbox Type | Fixed gear ratio gearbox | Fixed gear ratio gearbox | Fixed gear ratio gearbox |
| Chassis/Steering | |||
| Drive mode | Front front drive | Front front drive | Front front drive |
| Front suspension type | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension |
| Rear suspension type | Trailing arm torsion beam non-independent suspension | Trailing arm torsion beam non-independent suspension | Trailing arm torsion beam non-independent suspension |
| Steering type | Electric power assist | Electric power assist | Electric power assist |
| Vehicle structure | Load-bearing | Load-bearing | Load-bearing |
| Wheels/Brakes | |||
| Front brake type | Ventilated disc | Ventilated disc | Ventilated disc |
| Rear brake type | Solid disc | Solid disc | Solid disc |
| Parking brake type | Electronic parking brake | Electronic parking brake | Electronic parking brake |
| Front tire size | 215/55 R17 | 215/55 R17 | 215/55 R17 |
| Rear tire size | 215/55 R17 | 215/55 R17 | 215/55 R17 |
