| Item / Specification |
N1S 2.5T Supreme 2WD (Gen2) |
N1S 2.5T Supreme 4WD (Gen2) |
| Basic Information — Gen2 (2020, 2.5T, China VI) |
| Model Name |

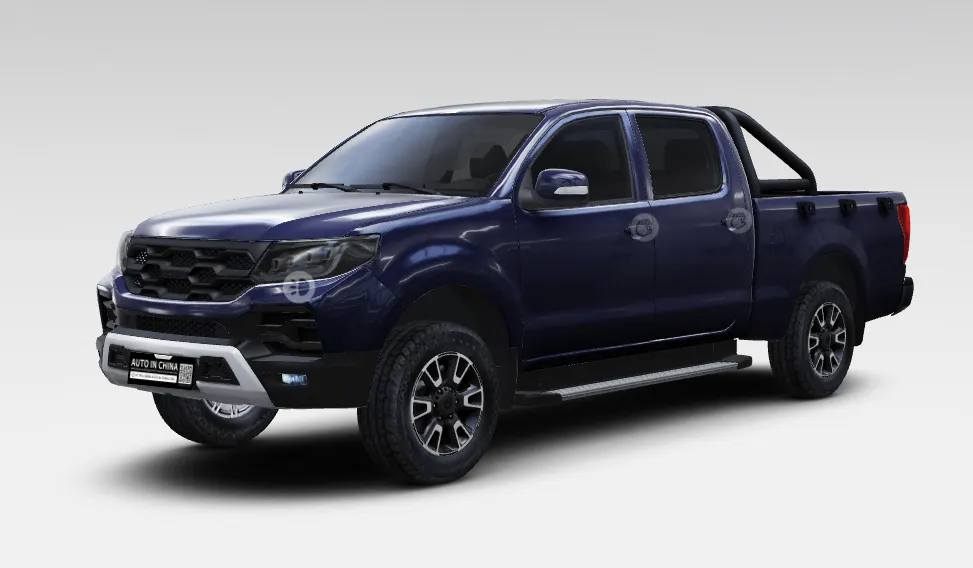

Huanghai N1S 2020 2.5T Supreme 2WD |
Huanghai N1S 2020 2.5T Supreme 4WD |
| Announcement Model |
DD1031HBL (2WD) |
DD1031RAL (4WD) |
| Manufacturer |
SG Automotive (Huanghai) |
SG Automotive (Huanghai) |
| Vehicle Type |
Pickup (Double Cab, 4 doors, 5 seats) |
Pickup (Double Cab, 4 doors, 5 seats) |
| Body Style |
4-door, 5-seat, Extended Double Cab |
4-door, 5-seat, Extended Double Cab |
| Drivetrain |
4×2 Rear-Wheel Drive (RWD) |
4×4 Part-Time Four-Wheel Drive |
| Dimensions L×W×H (mm) |
5570×1840×1805 |
5570×1840×1805 |
| Wheelbase (mm) |
3385 |
3385 |
| Front/Rear Track (mm) |
1528 / 1528 |
1528 / 1528 |
| Front/Rear Overhang (mm) |
910 / 1275 |
910 / 1275 |
| Approach/Departure Angle (°) |
32 / 26 |
32 / 26 |
| Min. Ground Clearance (mm) |
215 |
215 |
| Curb Weight (kg) |
1915 (2WD) / 1935 (Std Bed) |
2005 (4WD, Long Bed) |
| Max GVW (kg) |
≈2840–2910 |
≈2925–2980 |
| Payload (kg) |
650 |
650 |
| Fuel Tank Capacity (L) |
70 |
70 |
| Max Speed (km/h) |
150 |
150 |
| Seating Capacity |
5 (2+3) |
5 (2+3) |
| Body Structure |
Body-on-Frame (Ladder Chassis) |
Body-on-Frame (Ladder Chassis) |
| Steering Position |
Left-Hand Drive (LHD) |
Left-Hand Drive (LHD) |
| Fuel Type |
Diesel |
Diesel |
| Recommended Fuel |
No. 0 Diesel |
No. 0 Diesel |
| Emission Standard |
China VI / Euro V / GCC Compliant |
China VI / Euro V / GCC Compliant |
| Engine & Powertrain |
| Engine Model |
Isuzu-Jiangxi JE4D25Q6A |
Isuzu-Jiangxi JE4D25Q6A |
| Engine Type |
Inline 4-Cyl, Turbocharged, DOHC |
Inline 4-Cyl, Turbocharged, DOHC |
| Displacement (L/cc) |
2.5L / 2499 cc |
2.5L / 2499 cc |
| Aspiration |
Turbocharged |
Turbocharged |
| Fuel System |
Common Rail Direct Injection |
Common Rail Direct Injection |
| Max Power (kW/hp) |
110 kW / 150 hp |
110 kW / 150 hp |
| Max Power RPM |
3600 |
3600 |
| Max Torque (Nm) |
360 |
360 |
| Max Torque RPM |
1400–2800 |
1400–2800 |
| Cylinder Head Material |
Aluminum Alloy |
Aluminum Alloy |
| Cylinder Block Material |
Cast Iron |
Cast Iron |
| Emission Standard |
China VI / Equivalent Euro V |
China VI / Equivalent Euro V |
| Transmission |
6-Speed Manual (6MT) |
6-Speed Manual (6MT) |
| Clutch Type |
Manual, Single-Plate Dry Clutch |
Manual, Single-Plate Dry Clutch |
| Drivetrain |
Rear-Wheel Drive (RWD) |
Part-Time 4WD (2H/4H/4L) |
| Transfer Case |
— (2WD only) |
Manual Part-Time 4WD, 4L Torque ×2.48 |
| Low-Range Crawl Ratio |
— |
2.48× Torque Multiplier (4L Mode) |
| Chassis & Suspension |
| Body Structure |
Body-on-Frame (Ladder Chassis) |
Body-on-Frame (Ladder Chassis) |
| Front Suspension |
Double Wishbone Independent |
Double Wishbone Independent |
| Rear Suspension |
Leaf Spring, Solid Axle (Non-Indep.) |
Leaf Spring, Solid Axle (Non-Indep.) |
| Rear Axle |
Solid Rear Axle |
Solid Rear Axle with Differential |
| Rear Differential Lock |
— Not equipped |
○ Optional |
| Steering System |
Hydraulic Power Steering (HPS) |
Hydraulic Power Steering (HPS) |
| Turning Radius (m) |
≈6.5 (estimated) |
≈6.5 (estimated) |
| Wading Depth (mm) |
≈500 (tested) |
≈500 (tested) |
| Ramp Breakover Angle (°) |
≈20 (estimated) |
≈20 (estimated) |
| Brakes & Wheels |
| Front Brakes |
Ventilated Disc |
Ventilated Disc |
| Rear Brakes |
Drum |
Drum |
| Parking Brake |
Manual Handbrake |
Manual Handbrake |
| ABS Anti-lock Braking |
● Standard |
● Standard |
| EBD Electronic Brake Distribution |
● Standard |
● Standard |
| ESP Electronic Stability Control |
○ Optional (High Trim) |
○ Optional (High Trim) |
| Wheel Size |
17" Alloy Wheels |
17" Black-Treated Alloy Wheels |
| Wheel Style |
Standard Alloy (2WD) / Black-Treated (Opt.) |
17" Black-Treated Alloy |
| Tire Specification (F/R) |
235/65 R17 |
235/65 R17 |
| Spare Tire |
Full-size Spare (Underbody) |
Full-size Spare (Underbody) |
| Tire Certification |
ECE / GCC / ISO / DOT |
ECE / GCC / ISO / DOT |
| Cargo Bed |
| Bed Type |
Flatbed with Side Rails |
Flatbed with Side Rails |
| Bed Dimensions L×W×H (mm) |
1815×1520×480 (Long Bed) |
1815×1520×480 (Long Bed) |
| Bed Volume (m³, est.) |
≈1.32 m³ |
≈1.32 m³ |
| Spray-on Bed Liner |
● Spray-on Bedliner |
● Spray-on Bedliner |
| Bed Tie-Down Hooks |
● Inner & Outer Hooks |
● Inner & Outer Hooks |
| Bed Side Rails |
● Steel Side Rails |
● Steel Side Rails |
| Payload (kg) |
650 |
650 |
| Roll Bar |
● Cab-Protection Roll Bar |
● Cab-Protection Roll Bar |
| Exterior Features |
| Halogen Headlights |
● Standard |
● Standard |
| Headlight Leveling |
● Electronically Adjustable |
● Electronically Adjustable |
| LED DRL |
○ Optional |
○ Optional |
| Front Fog Lights |
● Standard |
● Standard |
| Body-Color Door Handles |
● Standard |
○ Chrome Handles (Optional) |
| Chrome Mirror Covers |
— Not equipped |
● Chrome Mirror Covers |
| Power Side Mirrors |
● With Turn Signal |
● With Turn Signal |
| Side Steps (Both Sides) |
● Standard |
● Standard |
| Rear Bumper Step |
● Standard |
● Standard |
| Engine Underbody Guard |
● Standard |
● Standard |
| Front/Rear Mudguards |
● / |
● / |
| Tow Hook / Trailer Hitch |
○ Optional |
○ Optional |
| 4WD Tailgate Badge |
— (No badge on 2WD) |
● "4WD" Tailgate Badge |
| "4×4" Body Side Decal |
— Not equipped |
● (2 pcs, below mirrors) |
| Metallic Paint |
● Standard |
● Standard |
| Available Colors |
White/Black/Silver/Red/Blue/Khaki |
White/Black/Silver/Red/Blue/Khaki |
| Interior Features |
| Interior Theme |
Two-Tone Luxury Interior |
Two-Tone Luxury Interior |
| Seat Material |
Genuine Leather Seats |
Genuine Leather Seats |
| Driver Seat Adjustment |
● 8-Way Manual (incl. Height) |
● 8-Way Manual (incl. Height) |
| Passenger Seat Adjustment |
● 4-Way Manual |
● 4-Way Manual |
| Rear Seat |
60/40 Split-Folding (Bench) |
60/40 Split-Folding (Bench) |
| Rear Center Armrest + Cup Holder |
● Standard |
● Standard |
| Steering Wheel Material |
Synthetic Leather / Microfiber |
Synthetic Leather / Microfiber |
| Steering Wheel Adjustment |
● Tilt Adjustment |
● Tilt Adjustment |
| Multi-Function Steering Wheel |
● Audio + Cruise |
● Audio + Cruise |
| Sun Visor Vanity Mirror |
● Driver + Passenger |
● Driver + Passenger |
| Overhead Console |
● Sunglasses Case + Reading Lights |
● Sunglasses Case + Reading Lights |
| Cigarette Lighter / Ashtray |
● Cylindrical Ashtray |
● Cylindrical Ashtray |
| 12V Power Outlet |
● Front Cabin |
● Front Cabin |
| USB Port |
● Front (Charging) |
● Front (Charging) |
| Air Conditioning |
● Automatic A/C |
● Automatic A/C |
| Rear Window Defogger |
● Standard |
● Standard |
| Door Panel Trim |
PVC / Synthetic Leather |
PVC / Synthetic Leather |
| Floor Mat |
● Carpet Floor Mats |
● Carpet Floor Mats |
| Infotainment System |
| Instrument Cluster |
● Digital Trip Computer + Clock |
● Digital Trip Computer + Clock |
| Center Display |
● MP5 Color Touchscreen |
● MP5 Color Touchscreen |
| GPS / BeiDou Navigation |
● Standard |
● Standard |
| Dash Cam |
● GPS / BeiDou Integrated Dash Cam |
● GPS / BeiDou Integrated Dash Cam |
| Number of Speakers |
4 |
4 |
| AM/FM Radio |
● Standard |
● Standard |
| USB Music Playback |
● Standard |
● Standard |
| Bluetooth / Hands-Free |
— Not equipped |
— Not equipped |
| Safety & Security |
| Driver Airbag |
● Standard |
● Standard |
| Passenger Airbag |
● Standard |
● Standard |
| Seatbelt Reminder (D/P) |
● / |
● / |
| 5 Three-Point Seatbelts |
● Standard |
● Standard |
| Rear Center 3-Point Seatbelt |
● Standard |
● Standard |
| Rear Seatbelt Pretensioners |
● Front (Load-Limiting) |
● Front (Load-Limiting) |
| Rear Door Child Safety Locks |
● Standard |
● Standard |
| ABS + EBD |
● / |
● / |
| TPMS Tire Pressure Monitoring |
— Not equipped |
○ Optional |
| Door Reinforcement Beams |
● (All 4 Doors) |
● (All 4 Doors) |
| High-Mount LED Brake Light |
● Standard |
● Standard |
| Rearview Camera |
● Standard |
● Standard |
| Speed-Sensing Auto Door Lock |
● Standard |
● Standard |
| Collision Auto Unlock |
● Standard |
● Standard |
| Engine Immobilizer |
● Standard |
● Standard |
| Remote Central Locking |
● Standard |
● Standard |
| Remote Key (Folding, 1 key) |
● Standard |
● Standard |
| Anti-Theft Alarm |
○ Optional |
○ Optional |
| Collapsible Steering Column |
● Energy-Absorbing |
● Energy-Absorbing |
| Front Crash Energy Absorption Zone |
● Energy-Absorbing Frame |
● Energy-Absorbing Frame |
| Driver Assistance |
| Cruise Control |
● Standard |
● Standard |
| Lane Departure Warning (LDW) |
— Not equipped |
— Not equipped |
| Automatic Emergency Braking (AEB) |
— Not equipped |
— Not equipped |
| Blind Spot Detection (BSD) |
— Not equipped |
— Not equipped |
| Drive Mode Select |
— 2WD Only |
● 2H / 4H / 4L Select |
| Hill Descent Control (HDC) |
— Not equipped |
○ Optional |
| GCC Compliance & Certification |
| GCC Conformity Assessment |
● GCC Standard (GSO) |
● GCC Standard (GSO) |
| ECE Tire Certification |
● ECE Certified Tires |
● ECE Certified Tires |
| GCC Tire Marking |
● GCC Compliant |
● GCC Compliant |
| DOT Tire Certification |
● Standard |
● Standard |
| ISO Vehicle Certification |
● Standard |
● Standard |
| Front Underrun Protection (FUP) |
● GCC Mandatory Protection |
● GCC Mandatory Protection |
| Rear Underrun Protection (RUP) |
● Standard |
● Standard |
| Side Underrun Protection (SUP) |
● Standard |
● Standard |
| High-Mount LED Brake Light |
● GCC Mandatory |
● GCC Mandatory |
| Reflective Markings (F/R/Side) |
● Amber + Red + White |
● Amber + Red + White |
| Dual-Tone Horn |
● GCC Sound Level Compliant |
● GCC Sound Level Compliant |
| Headlight Alignment (LHD) |
● LHD Beam Pattern |
● LHD Beam Pattern |
| Sun Visor (D/P) |
● GCC Heat-Resistant Type |
● GCC Heat-Resistant Type |
| A/C Performance (Extreme Heat) |
● Passed GCC High-Temp Test |
● Passed GCC High-Temp Test |
| Operating Temp. Range |
−28°C to +42°C |
−28°C to +42°C |
| Dust-Proof Sealing Kit |
● GCC-Spec Door Seals |
● GCC-Spec Door Seals |
