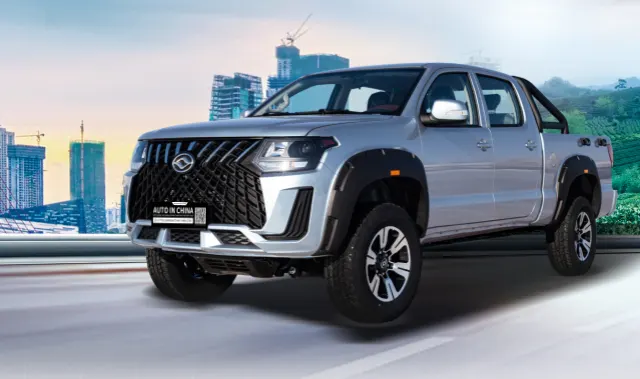

HuangHai N2S Premium Diesel Pickup Truck 2WD & 4WD
GCC Certified
Export quotationPrice on request
Contact us for the latest price, configuration and availability.
Original price information · confirm values
- Original listed price: 13300
- Original listed price: 14500
Source values retained for reference. Zero or placeholder values are not a selling price.
Vehicle specification, options and delivery terms are confirmed with your quotation.
About this vehicle
Vehicle overview
Configuration details
Full original configuration
Complete source tables retained. Scroll across for multi-edition tables; confirm the exact edition with your quotation.
| Item / Specification | N2S Supreme Diesel 2WD | N2S Supreme Diesel 4WD |
| Basic Information | ||
| Model Name | Huanghai N2S Supreme Diesel 2WD (LHD) | Huanghai N2S Supreme Diesel 4WD (LHD) |
| Announcement Model | DD1032R / R241 (2WD Diesel) | DD1032R / R242 (4WD Diesel) |
| Manufacturer | SG Automotive (Huanghai) | SG Automotive (Huanghai) |
| Vehicle Type | Pickup (Double Cab, 4 doors, 5 seats) | Pickup (Double Cab, 4 doors, 5 seats) |
| Body Style | 4-door, 5-seat, Double Cab | 4-door, 5-seat, Double Cab |
| Drivetrain | 4×2 Rear-Wheel Drive (RWD) | 4×4 Part-Time Four-Wheel Drive |
| Dimensions L×W×H (mm) | 5560×1840×1850 | 5560×1840×1850 / 1830 |
| Wheelbase (mm) | 3405 | 3405 |
| Front/Rear Track (mm) | 1548 / 1548 | 1548 / 1548 |
| Front/Rear Overhang (mm) | 895 / 1260 | 895 / 1260 |
| Approach/Departure Angle (°) | 32 / 26 | 32 / 26 |
| Min. Ground Clearance (mm) | 210–215 | 210–215 |
| Curb Weight (kg) | ≈1980–2010 | ≈1980–2010 |
| Max GVW (kg) | ≈2955 | ≈3200–3355 |
| Payload (kg) | 650 | 650 |
| Fuel Tank Capacity (L) | 70 | 70 |
| Max Speed (km/h) | 150 | 150 |
| Seating Capacity | 5 (2+3) | 5 (2+3) |
| Body Structure | Body-on-Frame (Ladder Chassis) | Body-on-Frame (Ladder Chassis) |
| Steering Position | Left-Hand Drive (LHD) | Left-Hand Drive (LHD) |
| Fuel Type | Diesel | Diesel |
| Recommended Fuel | No. 0 Diesel (China VI Standard) | No. 0 Diesel (China VI Standard) |
| Emission Standard | China VI / Euro V (Export) | China VI / Euro V (Export) |
| Operating Temp. Range | −28°C to +42°C | −28°C to +42°C |
| Engine & Powertrain | ||
| Engine Model | JE4D25Q5A / JE4D25Q6A (China VI) | JE4D25Q5A / JE4D25Q6A (China VI) |
| Engine Type | Inline 4-Cyl, Turbocharged, DOHC | Inline 4-Cyl, Turbocharged, DOHC |
| Displacement (L/cc) | 2.5L / 2499 cc | 2.5L / 2499 cc |
| Bore×Stroke (mm) | 93 × 94 | 93 × 94 |
| Aspiration | Turbocharged (Common Rail Direct Injection) | Turbocharged (Common Rail Direct Injection) |
| Fuel System | Common Rail Direct Injection (CRDI) | Common Rail Direct Injection (CRDI) |
| Max Power (kW/hp) | 95–110 kW / 130–150 hp | 95–110 kW / 130–150 hp |
| Max Power RPM | 3400 rpm | 3400 rpm |
| Max Torque (Nm) | 320–360 | 320–360 |
| Max Torque RPM | 1600–2600 / 1400–2800 | 1600–2600 / 1400–2800 |
| Compression Ratio | ≈16.5:1 (Diesel) | ≈16.5:1 (Diesel) |
| Cylinder Head Material | Aluminum Alloy | Aluminum Alloy |
| Cylinder Block Material | Cast Iron | Cast Iron |
| Emission Standard | China VI / Equivalent Euro V | China VI / Equivalent Euro V |
| Transmission | 6-Speed Manual (6MT) | 6-Speed Manual (6MT) |
| Clutch Type | Manual, Single-Plate Dry Clutch | Manual, Single-Plate Dry Clutch |
| Drivetrain | Rear-Wheel Drive (RWD) | Part-Time 4WD (2H/4H/4L) |
| Transfer Case | — (2WD only) | Manual Part-Time 4WD, 4L Torque ×2.48 |
| Low-Range Crawl Ratio | — | 2.48× Torque Multiplier (4L Mode) |
| Chassis & Suspension | ||
| Body Structure | Body-on-Frame (Ladder Chassis) | Body-on-Frame (Ladder Chassis) |
| Front Suspension | Double Wishbone Independent | Double Wishbone Independent |
| Rear Suspension | Leaf Spring, Solid Axle (Non-Indep.) | Leaf Spring, Solid Axle (Non-Indep.) |
| Rear Axle | Solid Rear Axle | Solid Rear Axle with Differential |
| Rear Differential Lock | — Not equipped | ○ Optional |
| Steering System | Hydraulic Power Steering (HPS) | Hydraulic Power Steering (HPS) |
| Power Steering | Hydraulic | Hydraulic |
| Turning Radius (m) | ≈6.5 (estimated) | ≈6.5 (estimated) |
| Wading Depth (mm) | ≈500 (estimated) | ≈500 (estimated) |
| Ramp Breakover Angle (°) | ≈20 (estimated) | ≈20 (estimated) |
| Brakes & Wheels | ||
| Front Brakes | Ventilated Disc | Ventilated Disc |
| Rear Brakes | Drum | Drum |
| Parking Brake | Manual Handbrake | Manual Handbrake |
| ABS Anti-lock Braking | ● Standard | ● Standard |
| EBD Electronic Brake Distribution | ● Standard | ● Standard |
| Wheel Size | 17" Black-Treated Alloy Wheels | 17" Black-Treated Alloy Wheels |
| Tire Specification (F/R) | 265/65 R17 | 265/65 R17 |
| Spare Tire | Full-size Spare (Underbody) | Full-size Spare (Underbody) |
| Tire Certification | ECE / GCC / ISO / DOT | ECE / GCC / ISO / DOT |
| Cargo Bed | ||
| Bed Type | Flatbed with Side Rails (Flat Floor Optional) | Flatbed with Side Rails (Flat Floor Optional) |
| Bed Dimensions L×W×H (mm) | 1815×1520×515 | 1815×1520×515 |
| Bed Volume (m³, est.) | ≈1.42 m³ | ≈1.42 m³ |
| Spray-on Bed Liner | ● Spray-on Bedliner | ● Spray-on Bedliner |
| Bed Tie-Down Hooks | ● Inner & Outer Hooks (8 anchor points) | ● Inner & Outer Hooks (8 anchor points) |
| Bed Side Rails / Roll Bar | ● Steel Rails + Roll Bar | ● Steel Rails + Roll Bar |
| Payload (kg) | 650 | 650 |
| Roll Bar | ● Cab-Protection Roll Bar | ● Cab-Protection Roll Bar |
| Exterior Features | ||
| Halogen Headlights | ● Standard | ● Standard |
| Headlight Leveling | ● Manual Adjustable | ● Manual Adjustable |
| Headlight Black-Out Treatment | ● Standard | ● Standard |
| LED DRL | ● Standard | ● Standard |
| Front Fog Lights | ○ Optional | ○ Optional |
| Body-Color Door Handles | ● (Chrome) | ● (Chrome) |
| Chrome Mirror Covers | ● Standard | ● Standard |
| Power Side Mirrors | ● With Turn Signal | ● With Turn Signal |
| Side Steps (Both Sides) | ● Standard | ● Standard |
| Rear Bumper Step | ● Standard | ● Standard |
| Tow Hook / Trailer Hitch | ○ Optional | ○ Optional |
| Engine Underbody Guard | ● Engine + Clutch + Fuel Tank Guards | ● Engine + Clutch + Fuel Tank Guards |
| Body Undercoating | ● Standard | ● Standard |
| Rear Privacy Glass (Dark) | ● Standard | ● Standard |
| 4WD Tailgate Badge | — (No badge on 2WD) | ● "4WD" Tailgate Badge |
| "4×4" Body Side Decal | — Not equipped | ● (2 pcs, below mirrors) |
| Metallic Paint | ● Standard | ● Standard |
| Available Colors | ● White/Black/Silver/Red/Blue/Khaki | ● White/Black/Silver/Red/Blue/Khaki |
| Interior Features | ||
| Interior Theme | Two-Tone Luxury Interior | Two-Tone Luxury Interior |
| Seat Material | Premium Synthetic Leather (Genuine Leather Opt.) | Premium Synthetic Leather (Genuine Leather Opt.) |
| Driver Seat Adjustment | ● 8-Way Manual (incl. Height) | ● 8-Way Manual (incl. Height) |
| Passenger Seat Adjustment | ● 4-Way Manual | ● 4-Way Manual |
| Rear Seat | 60/40 Split-Folding (Bench) | 60/40 Split-Folding (Bench) |
| Rear Center Armrest + Cup Holder | ● Standard | ● Standard |
| Steering Wheel Material | Synthetic Leather Multi-Function | Synthetic Leather Multi-Function |
| Steering Wheel Adjustment | ● Manual Tilt | ● Manual Tilt |
| Multi-Function Steering Wheel | ● Audio + Cruise Control | ● Audio + Cruise Control |
| Sun Visor Vanity Mirror | ● Driver + Passenger | ● Driver + Passenger |
| Overhead Console | ● Sunglasses Case + Reading Lights | ● Sunglasses Case + Reading Lights |
| Cigarette Lighter / Ashtray | ● Cylindrical Ashtray | ● Cylindrical Ashtray |
| 12V Power Outlet | ● Front Cabin | ● Front Cabin |
| USB / Type-C Port | ● Front (Charging) | ● Front (Charging) |
| Air Conditioning | ● Manual A/C (Eco-Friendly) | ● Manual A/C (Eco-Friendly) |
| Rear Window Defogger | ● Standard | ● Standard |
| Door Panel Trim | PVC / Synthetic Leather | PVC / Synthetic Leather |
| Floor Mat | ● Carpet Floor Mats | ● Carpet Floor Mats |
| Infotainment System | ||
| Instrument Cluster | ● Digital Trip Computer + Clock | ● Digital Trip Computer + Clock |
| Center Display | ● MP5 Color Touchscreen (≈7–8") | ● MP5 Color Touchscreen (≈7–8") |
| GPS / BeiDou Navigation | ● Standard | ● Standard |
| Dash Cam (GPS/BeiDou) | ● Standard | ● Standard |
| Number of Speakers | 6 | 6 |
| AM/FM Radio | ● Standard | ● Standard |
| USB Music Playback | ● Standard | ● Standard |
| Bluetooth / Hands-Free Calling | ● Standard | ● Standard |
| Safety & Security | ||
| Driver Airbag | ● Standard | ● Standard |
| Passenger Airbag | ● Standard | ● Standard |
| Seatbelt Reminder (D/P) | ● / | ● / |
| 5 Three-Point Seatbelts | ● Standard | ● Standard |
| Rear Center 3-Point Seatbelt | ● Standard | ● Standard |
| Rear Door Child Safety Locks | ● Standard | ● Standard |
| ABS + EBD | ● / | ● / |
| TPMS Tire Pressure Monitoring | ● Standard | ● Standard |
| Seatbelt Pretensioners | ● Front (Load-Limiting) | ● Front (Load-Limiting) |
| Door Reinforcement Beams | ● (All 4 Doors) | ● (All 4 Doors) |
| High-Mount LED Brake Light | ● Standard | ● Standard |
| Rearview Camera | ● Standard | ● Standard |
| Rear Parking Sensors | ● Standard | ● Standard |
| Speed-Sensing Auto Door Lock | ● Standard | ● Standard |
| Collision Auto Unlock | ● Standard | ● Standard |
| Engine Immobilizer | ● Standard | ● Standard |
| Remote Central Locking | ● Standard | ● Standard |
| Remote Key (Folding, 1 key) | ● Standard | ● Standard |
| Anti-Theft Alarm | ○ Optional | ○ Optional |
| Collapsible Steering Column | ● Energy-Absorbing | ● Energy-Absorbing |
| Front Crash Energy Absorption Zone | ● Energy-Absorbing Frame | ● Energy-Absorbing Frame |
| Driver Assistance | ||
| Cruise Control | ● Standard | ● Standard |
| Lane Departure Warning (LDW) | — Not equipped | — Not equipped |
| Automatic Emergency Braking (AEB) | — Not equipped | — Not equipped |
| Blind Spot Detection (BSD) | — Not equipped | — Not equipped |
| Drive Mode Select | — 2WD Only | ● 2H / 4H / 4L Select |
| Hill Descent Control (HDC) | — Not equipped | ○ Optional |
| Hill Start Assist (HSA) | ○ Optional | ○ Optional |
| ESP Electronic Stability Control | ○ Optional (High Trim) | ○ Optional (High Trim) |
| GCC Compliance & Certification | ||
| GCC Conformity Assessment | ● GCC Standard (GSO) | ● GCC Standard (GSO) |
| ECE Tire Certification | ● ECE Certified Tires | ● ECE Certified Tires |
| GCC Tire Marking | ● GCC Compliant | ● GCC Compliant |
| DOT Tire Certification | ● Standard | ● Standard |
| ISO Vehicle Certification | ● Standard | ● Standard |
| Front Underrun Protection (FUP) | ● GCC Mandatory Protection | ● GCC Mandatory Protection |
| Rear Underrun Protection (RUP) | ● Standard | ● Standard |
| Side Underrun Protection (SUP) | ● Standard | ● Standard |
| High-Mount LED Brake Light | ● GCC Mandatory | ● GCC Mandatory |
| Reflective Markings (F/R/Side) | ● Amber + Red + White | ● Amber + Red + White |
| Dual-Tone Horn | ● GCC Sound Level Compliant | ● GCC Sound Level Compliant |
| Headlight Alignment (LHD) | ● LHD Beam Pattern | ● LHD Beam Pattern |
| Sun Visor (D/P) | ● GCC Heat-Resistant Type | ● GCC Heat-Resistant Type |
| A/C Performance (Extreme Heat) | ● Passed GCC High-Temp Test | ● Passed GCC High-Temp Test |
| Dust-Proof Sealing Kit | ● GCC-Spec Door Seals | ● GCC-Spec Door Seals |
| Operating Temp. Range | −28°C to +42°C | −28°C to +42°C |
