Livan E5 Plus | Middle East GCC Version
Livan E5 Plus PHEV Configuration Specification Sheet
1200 km Range | FWD | LHD | GCC Certified
|
|
| BASIC PARAMETERS |
| Model Name |
Livan E5 Plus / Livan E5 Plus (3rd Generation) |
| Vehicle Category |
Mid-size Plug-in Hybrid Electric SUV (PHEV) |
| Manufacturer |
Seres NEV / Livan Automobile |
| Brand Affiliation |
Seres Group Intelligent Electric Brand |
| Drive Type |
Front-Wheel Drive (FWD) |
| Body Structure |
Unibody SUV |
| Doors / Seating |
5 doors / 5-seat or 7-seat (2+3+2 optional) |
| L×W×H (mm) |
4760 × 1865 × 1710 |
| Wheelbase (mm) |
2785 |
| Front / Rear Track (mm) |
1585 / 1580 |
| Curb Weight (kg) |
1900 (5-seat) / 1840 (120km Standard) |
| Max. Loaded Mass (kg) |
2450 (5-seat) / 2390 (120km Standard) |
| Fuel Tank Capacity (L) |
60 |
| Trunk Volume (L) |
465–1701 (Rear seats folded按比例放倒) |
| Max. Speed (km/h) |
180 |
| 0–100 km/h Acceleration (s) |
7.8 |
| Comprehensive Range CLTC (km) |
1200 (230km version) / 1300 (165km version) |
| Steering Position |
LHD (GCC Standard) |
| ENGINE & POWERTRAIN |
| Engine Model |
H15R |
| Engine Type |
1.5L Naturally Aspirated (PHEV Dedicated) |
| Cylinder Layout / Count |
Inline L4 / 4 cylinders |
| Valves per Cylinder |
4-valve (DOHC Dual Overhead Camshaft) |
| Displacement (mL / L) |
1499 mL / 1.5 L |
| Engine Max. Power |
70 kW / 95 HP (PS) |
| Engine Max. Torque |
Not publicly disclosed |
| Fuel Type / Grade |
PHEV / RON 92# Gasoline (China VIb) |
| Fuel Supply |
Multi-Point EFI |
| Cylinder Head / Block Material |
Aluminum Alloy / Aluminum Alloy |
| Emission Standard |
China VIb / Equivalent Euro 6 |
| Motor Type |
Permanent Magnet Synchronous Motor |
| Drive Motor Count / Layout |
Single Motor / Front-Mounted |
| Motor Max. Power |
160 kW / 218 HP (PS) |
| Motor Max. Torque |
330 N·m |
| System Combined Power |
160 kW (Motor-Dominant, Electric-Priority Architecture) |
| System Combined Torque |
330 N·m |
| Energy Consumption |
17.8 kWh/100km (3rd Gen: 19.1 kWh/100km) |
| Transmission |
E-CVT Electronic Continuously Variable |
| Drivetrain |
Front-Engine, Front-Wheel Drive (FWD) |
| BATTERY & CHARGING |
| Battery Type |
LFP (Lithium Iron Phosphate) |
| Battery Technology |
CTP Cell-to-Pack (No-Module Design) |
| Cell Manufacturer |
Guoxuan Gaoke / Ganfeng Li-Power |
| Battery Capacity (kWh) |
25 (165km ver.) / 17.5 (100km base) / 18.4 (120km ver.) |
| Pure Electric Range CLTC (km) |
165 (Standard) / 230 (3rd Gen Extended) |
| Pure Electric Range WLTC (km) |
120 |
| Comprehensive Range CLTC (km) |
1200 (230km ver.) / 1300 (165km ver.) |
| WLTC Fuel Consumption (L/100km) |
0.94 (Mixed Driving Cycle) |
| Min. SOC Fuel Consumption CLTC |
4.5–4.9 L/100km |
| Min. SOC Fuel Consumption WLTC |
5.6–5.8 L/100km |
| DC Fast Charging (30–80%) |
54 min (0.9 hrs) |
| AC Slow Charging (20–90%) |
4 hrs |
| DC Fast Charge Port Location |
Right Side (Same Side as Fuel Filler) |
| AC Slow Charge Port Location |
Right Side (Same Side as Fuel Filler) |
| Fast Charge Range (%) |
30–80 |
| Slow Charge Range (%) |
20–90 |
| Battery Heating System |
● Standard (Low-Temp Heating Film, Direct-Cooling Self-Heating Tech) |
| Battery Cooling System |
● Standard (Direct Refrigerant Cooling, ±2°C Temp Control) |
| Battery Safety |
Flame-Retardant Materials + Thermal Runaway Protection (Shell Tensile Strength 1180 MPa) |
| One-Pedal Driving Mode |
● Standard (Selected Trims) |
| V2L External Discharge |
● Standard / Max Output 3.3 kW |
| CHASSIS & SUSPENSION |
| Body Structure |
Unibody |
| Front Suspension |
MacPherson Strut Independent |
| Rear Suspension |
Multi-Link Independent |
| Steering Type |
Electric Power Steering (EPS) |
| Gear Selector |
Electronic Column-Mounted Shifter |
| Adaptive Suspension |
Damping Adjustment (Selected High-End Trims) |
| Drivetrain |
Front-Wheel Drive (FWD) |
| Min. Ground Clearance (mm) |
Not publicly disclosed |
| Approach / Departure Angle (°) |
19 / 24 |
| BRAKES & WHEELS |
| Front Brake Type |
Ventilated Disc |
| Rear Brake Type |
Solid Disc |
| Parking Brake |
Electronic Parking Brake (EPB) |
| ABS Anti-lock Braking |
● Standard |
| EBD Electronic Brakeforce Distribution |
● Standard |
| BA/EBA Brake Assist |
● Standard |
| TCS Traction Control |
● Standard |
| ESP/DSC Electronic Stability Control |
● Standard |
| Auto Hold |
● Standard |
| HSA Hill Start Assist |
● Standard |
| HDC Hill Descent Control |
● Standard |
| Front Tire Size |
225/55 R18 (Std) / 235/50 R19 (○ Optional) |
| Rear Tire Size |
225/55 R18 (Std) / 235/50 R19 (○ Optional) |
| Wheel Material |
Aluminum Alloy (Std 18") / 19" Moon-Rhythm Wheels (○ Optional) |
| Spare Tire |
Tire Repair Kit (Selected Trims) / Non-Full-Size Spare (Selected Trims) |
| EXTERIOR |
| Headlight Type |
LED High/Low Beam |
| Daytime Running Lights (DRL) |
● Standard |
| Headlight Height Adjustment |
● Standard |
| Headlight Delay Off |
● Standard |
| Adaptive High/Low Beam |
○ Standard (High-End Trims) |
| Front Fog Lights |
— Not Equipped |
| Rear Fog Light |
● Standard (GCC Mandatory) |
| Rain/Fog Headlight Mode |
○ Standard (Selected Trims) |
| Cornering Lights |
— Not Equipped |
| Rear Wiper |
● Standard |
| Rain-Sensing Wipers |
● Standard (Rainfall Sensor) |
| Sunroof Type |
● Panoramic Sunroof (Openable) |
| Roof Rails |
○ Standard (Selected Trims) |
| Key Type |
● Remote Key / Bluetooth Key / NFC Key |
| Keyless Entry |
● Standard |
| Keyless Start |
● Standard |
| Remote Engine Start |
● Standard (Mobile App Remote Control) |
| Door Opening Style |
Conventional Front-Hinged Doors |
| Hidden Door Handles |
— Not Equipped (Traditional Mechanical Handles) |
| Wheel Material |
● Aluminum Alloy (Std 18") / 19" Optional |
| INTERIOR |
| Interior Design Style |
Minimalist Light-Luxury Aesthetic / 3D-Mesh Upholstery Craft |
| Interior Colors |
Obsidian Black (Std) / Cocoa Brown / Sunset Orange (○ Optional) |
| Seat Material |
● Leatherette (High-End Trims: Leatherette + Genuine Leather Mix) |
| Driver Seat Adjustment |
● Fore/Aft + Recline + Height (2-way), 6-way Manual or Power |
| Passenger Seat Adjustment |
● Fore/Aft + Recline (4-way) |
| Front Seat Functions |
● Heating / ● Ventilation (Selected High-End Trims) |
| Driver Seat Memory |
○ Standard (High-End Trims) |
| 2nd Row Seat Adjustment |
● Recline Adjustment / Multi-Angle Fold (Max ~119°) |
| 2nd Row Fold Type |
● Split-Folding |
| 3rd Row Seats (7-seat) |
○ Standard (2+3+2 Layout) |
| Front / Rear Center Armrest |
● / ● Standard |
| Rear Cup Holder |
● Standard |
| Steering Wheel Material |
● Leather-Wrapped (D-Shaped 3-Spoke Multi-Function) |
| Steering Wheel Adjustment |
● Up/Down Manual Adjustment |
| Steering Wheel Paddle Shifters |
— Not Equipped (Electronic Column Shifter) |
| Steering Wheel Heating |
○ Standard (High-End Trims) |
| Driver Information Display |
● Standard |
| Full LCD Instrument Cluster |
● 8.8-inch Color LCD Display |
| HUD Head-Up Display |
— Not Equipped |
| Built-in Dashcam |
○ Standard (Selected Trims) |
| Wireless Phone Charging |
● 50W (Selected Trims) |
| Ambient Lighting |
● 256-Color Adjustable |
| Sun Visor Vanity Mirror |
● Driver + Illumination / ● Passenger + Illumination |
| Anti-Pinch Windows |
● All Windows One-Touch Up/Down (Anti-Pinch) |
| Front / Rear Power Windows |
● / ● Standard |
| INFOTAINMENT |
| Center Display Size |
● 15.6-inch Full-HD Floating Touchscreen |
| Display Features |
Human-Centric UI Design / Customizable Shortcut Functions |
| Smart Cockpit Chip |
Qualcomm Snapdragon SA8155P |
| Smart Cockpit System |
HUAWEI HiCar 4.0 / Doubao LLM Integration |
| Voice Recognition Control |
● Standard (4-Zone / Multi-Zone Recognition) |
| Voice Wake-Up |
● Dual-Zone Wake-Up (Specific Areas) |
| OTA Updates |
● Standard (Full-Vehicle OTA) |
| GPS Navigation |
● Standard (Amap / Traffic Light Countdown) |
| Traffic Info Display |
● Standard |
| Bluetooth / Phone System |
● Standard |
| Smartphone Mirroring |
● Apple CarPlay / HUAWEI HiCar / Carlink |
| Mobile App Remote Control |
● Standard (Door / Engine / A/C / Locate / Diagnostics) |
| 4G / 5G Connectivity |
● 4G (Selected Trims) |
| Wi-Fi Hotspot |
● Standard |
| Multimedia / Charging Ports |
● USB / Type-C (2 Front + 1 Rear) |
| Number of Speakers |
● 13 Speakers (High-End) / 4 Speakers (Base) |
| In-Car Karaoke (KTV) |
● Standard (High-End Trims) |
| SAFETY & SECURITY |
| Driver Airbag |
● Standard |
| Passenger Airbag |
● Standard |
| Front Side Airbags |
● Standard |
| Side Curtain Airbags (Full-Length) |
● Standard (Extends to 3rd Row) |
| Front Knee Airbag |
— / ○ (High-End Trims) |
| Center Airbag |
— Not Equipped |
| Seat Belt Reminder |
● All Seats (Visual + Audible) |
| TPMS Tire Pressure Monitoring |
● Standard (TPMS Display) |
| ISOFIX Child Seat Anchors |
● Standard |
| LATCH Child Seat Anchors |
● ISOFIX Compatible |
| Engine Immobilizer |
● Standard |
| Central Locking |
● Standard |
| Remote Key |
● Standard |
| Keyless Entry / Start |
● / ● Standard |
| Door Anti-Collision Beams |
● Standard (High-Strength Rolled Body) |
| Pretensioner Seat Belts |
● Standard |
| Brake Energy Regeneration |
● Standard |
| Low-Speed Pedestrian Alert |
● Standard (GCC Regulation) |
| Passive Pedestrian Protection |
— Not Equipped |
| Run-Flat Tires |
— Not Equipped |
| ADAS INTELLIGENT DRIVING ASSIST (L2 LEVEL) |
| Driving Assistance Level |
L2 (Selected Trims: L2+) |
| Total Sensing Hardware |
14 units (Cameras + mmWave Radars + Ultrasonic Sensors) |
| Surround-View Cameras |
4 units (360° Panoramic) |
| mmWave Radar Count |
2–3 units |
| Ultrasonic Sensor Count |
6 units |
| ACC Adaptive Cruise Control |
● Standard (Full-Speed Range) |
| LDW Lane Departure Warning |
● Standard |
| LKA Lane Keeping Assist |
● Standard |
| Lane Centering |
● Standard |
| FCW Forward Collision Warning |
● Standard |
| AEB Automatic Emergency Braking |
● Standard (Bosch Solution) |
| BSD Blind Spot Detection |
● Standard |
| LCA Lane Change Assist |
● Standard |
| DOW Door Open Warning |
● Standard |
| RCW Rear Collision Warning |
● Standard |
| RCTA Rear Cross Traffic Alert |
● Standard |
| TSR Traffic Sign Recognition |
● Standard |
| IHBC Intelligent High Beam Control |
○ Standard (Selected Trims) |
| DMS Driver Monitoring System |
○ Standard (Selected High-End Trims) |
| In-Cabin Vital Signs Detection |
○ Standard (Selected Trims) |
| Automatic Parking Assist |
○ Standard (Selected High-End Trims) |
| 360° Panoramic View |
● Standard |
| Transparent Chassis |
○ Standard (Selected High-End Trims) |
| Rear View Camera |
● Standard |
| Front / Rear Parking Radar |
● / ● Standard |
| Drive Mode Select |
● Multiple Drive Modes |
| GCC COMPLIANCE & CERTIFICATION |
| GCC Certification |
● GSO Conformity Assessment (Target Market Compliant) |
| Emission Standard |
China VIb / Equivalent Euro 6 |
| Front Underrun Protection (FUP) |
● Compliant with ECE R93 |
| Rear Underrun Protection (RUP) |
● Compliant with ECE R58 |
| Side Underrun Protection (SUP) |
● Compliant with ECE R73 |
| Daytime Running Lights (DRL) |
● Compliant with ECE R87 |
| Rear Fog Light |
● Compliant with ECE R38 (Mandatory) |
| High-Mount LED Stop Lamp |
● Standard |
| Dual-Tone Horn |
● Standard (Sound Level GCC Compliant) |
| LHD Headlight Calibration |
● Standard Left-Traffic Beam Pattern |
| High-Temperature A/C Test |
● Operating Range −28°C to +42°C |
| Dust Protection |
● Reinforced Body Seals / Anti-Dust Design |
| Chassis Anti-Rust |
● Underbody Coating + Galvanized Nuts + Stainless Steel Exhaust |
| Tire Certification |
● ECE + GCC + ISO + DOT (Quadruple Certified) |
| EU Whole-Vehicle Type Approval (WVTA) |
○ Partial Trims Certified (Market Dependent) |
| Battery Safety Certification |
● Flame-Retardant + Thermal Runaway Protection + 1180 MPa Shell |
| EXTERIOR COLOURS |

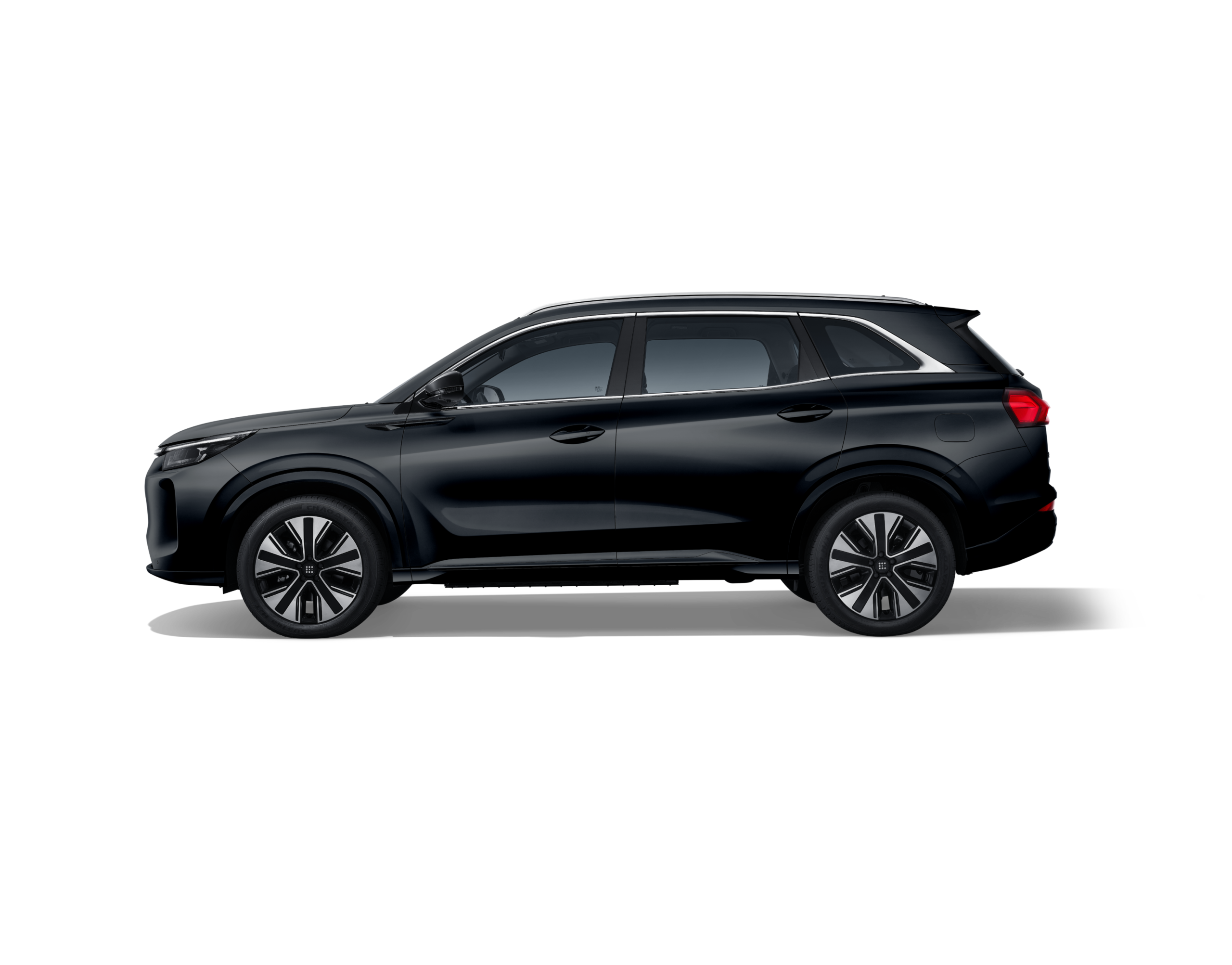

| Polar Night Black (极夜黑) |
● Standard |

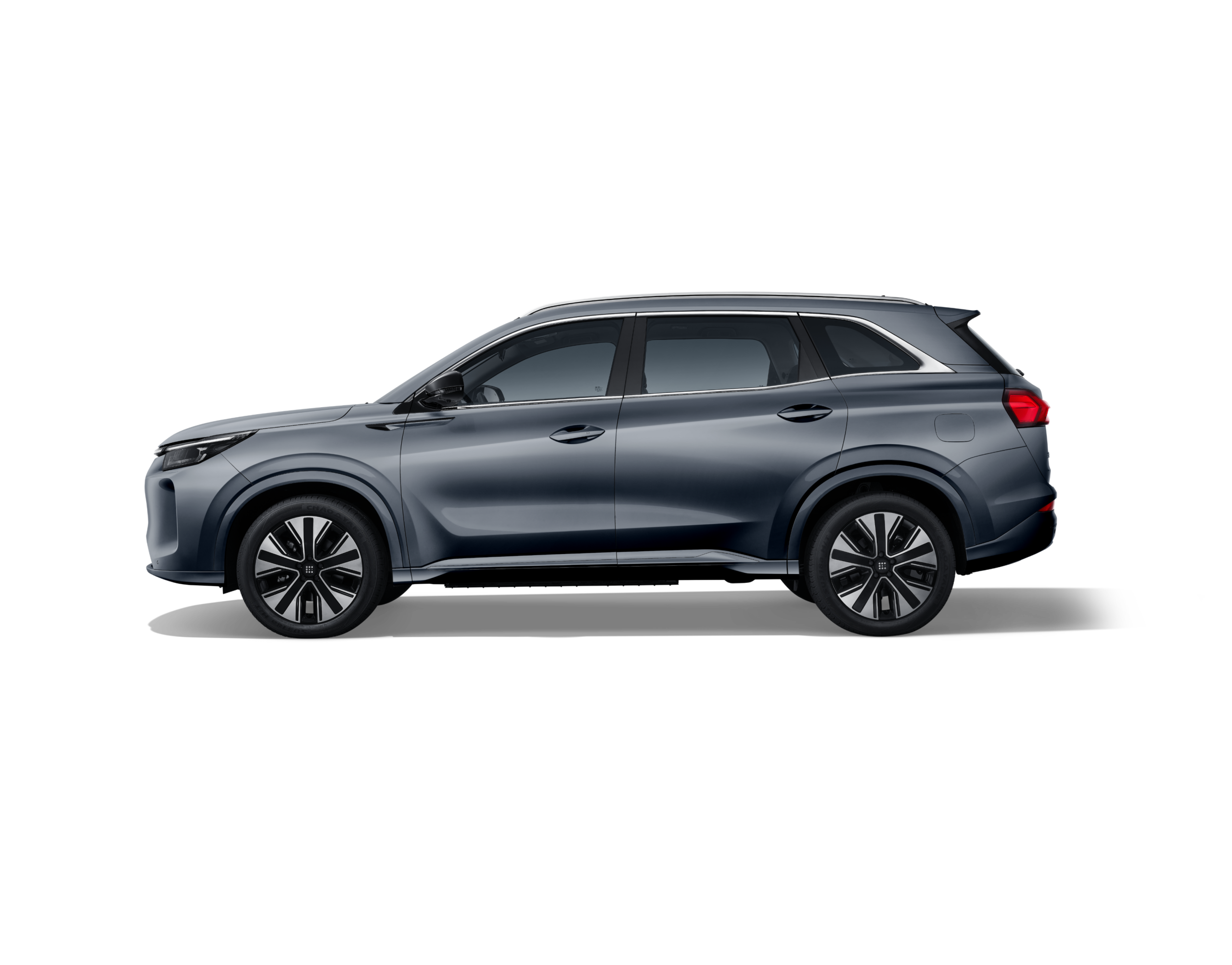

| Cloud Gray (慕云灰) |
● Standard |
| Flowing Light Gray (流光灰) |
● Standard |

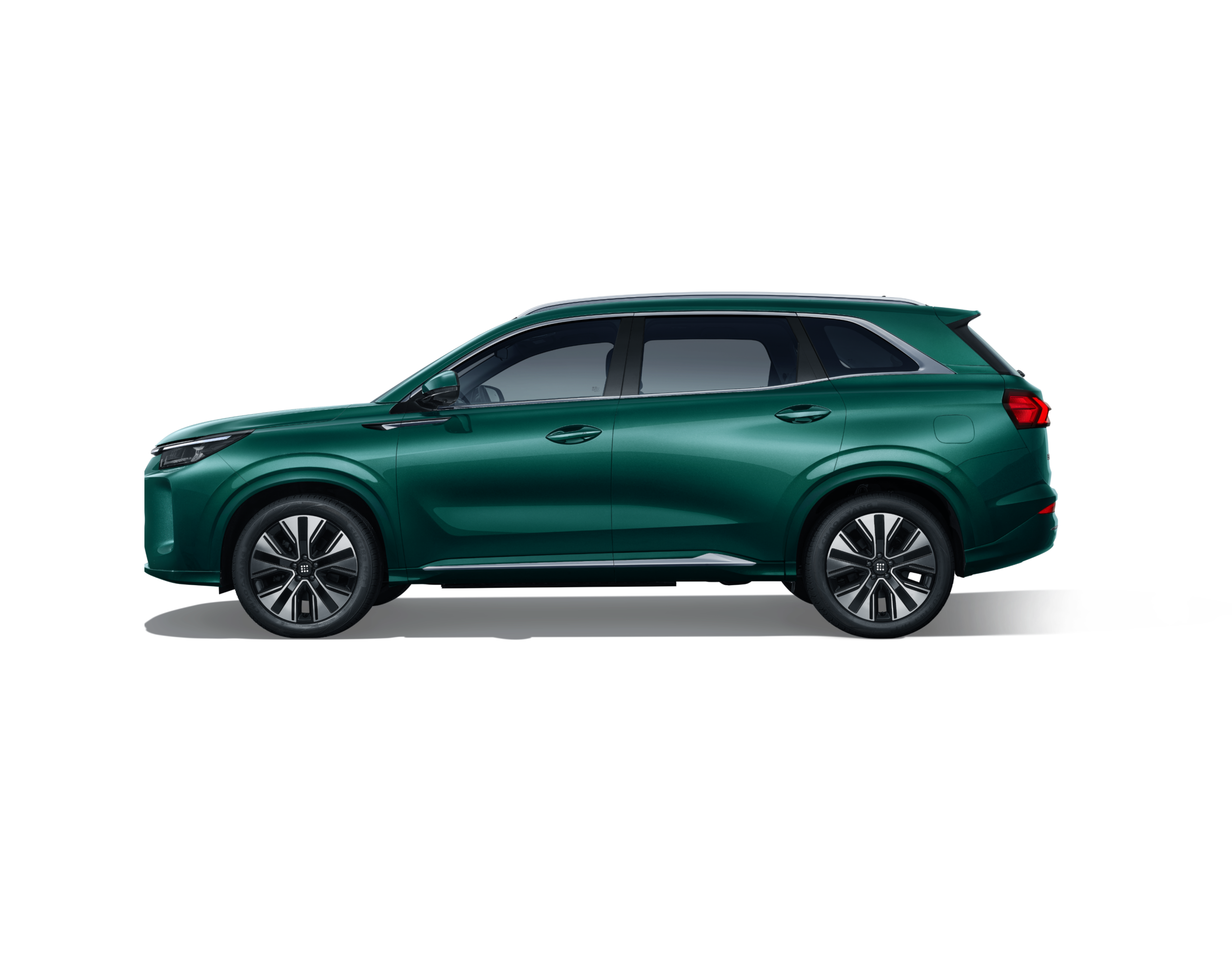

| Aurora Green (极光绿) |
● Standard |
| Quiet Sea Sand (静海沙) |
● Standard (New Color) |

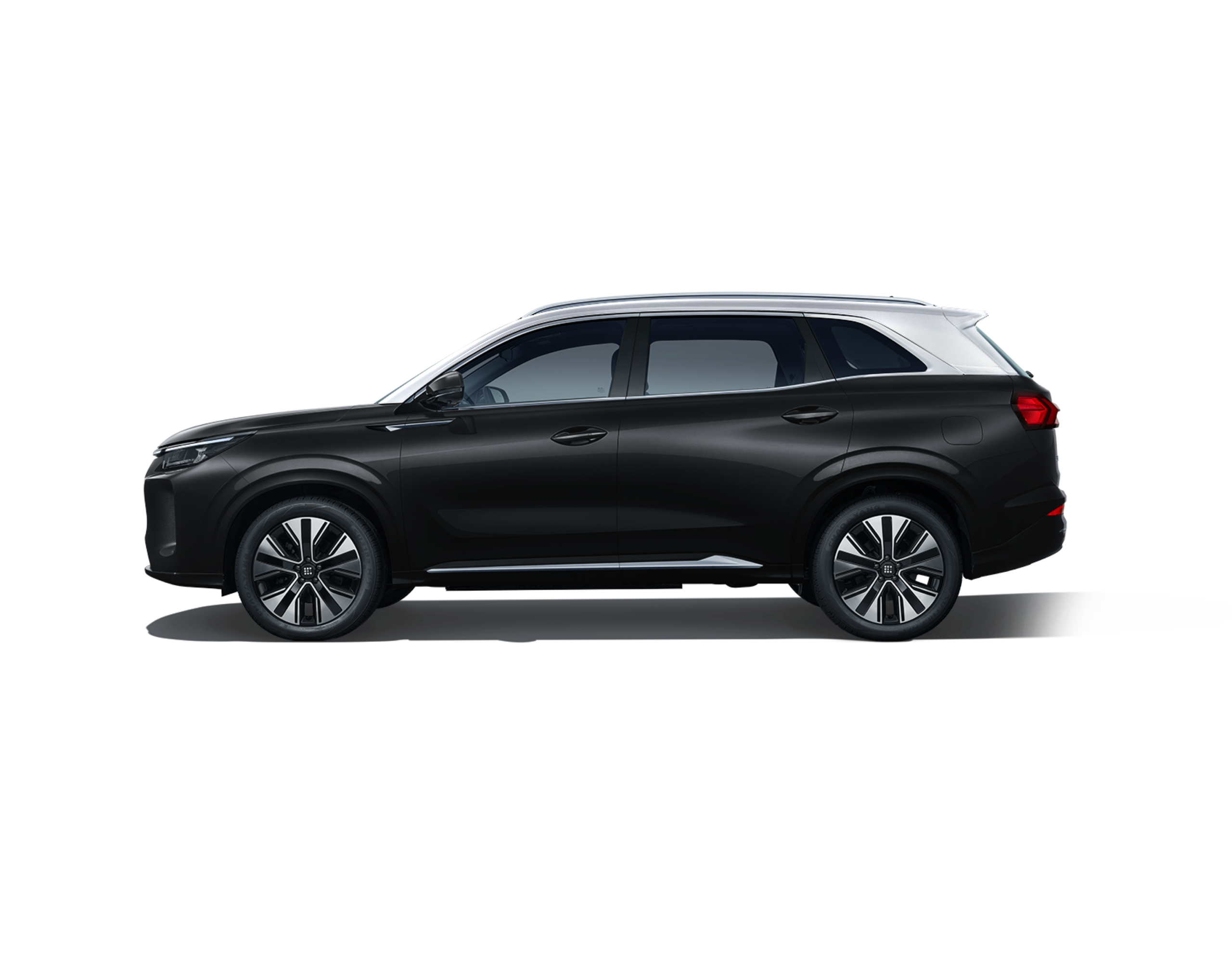

| Starry Night Aurora (Dual-Tone Roof) |
○ Black Roof Dual-Tone Body |

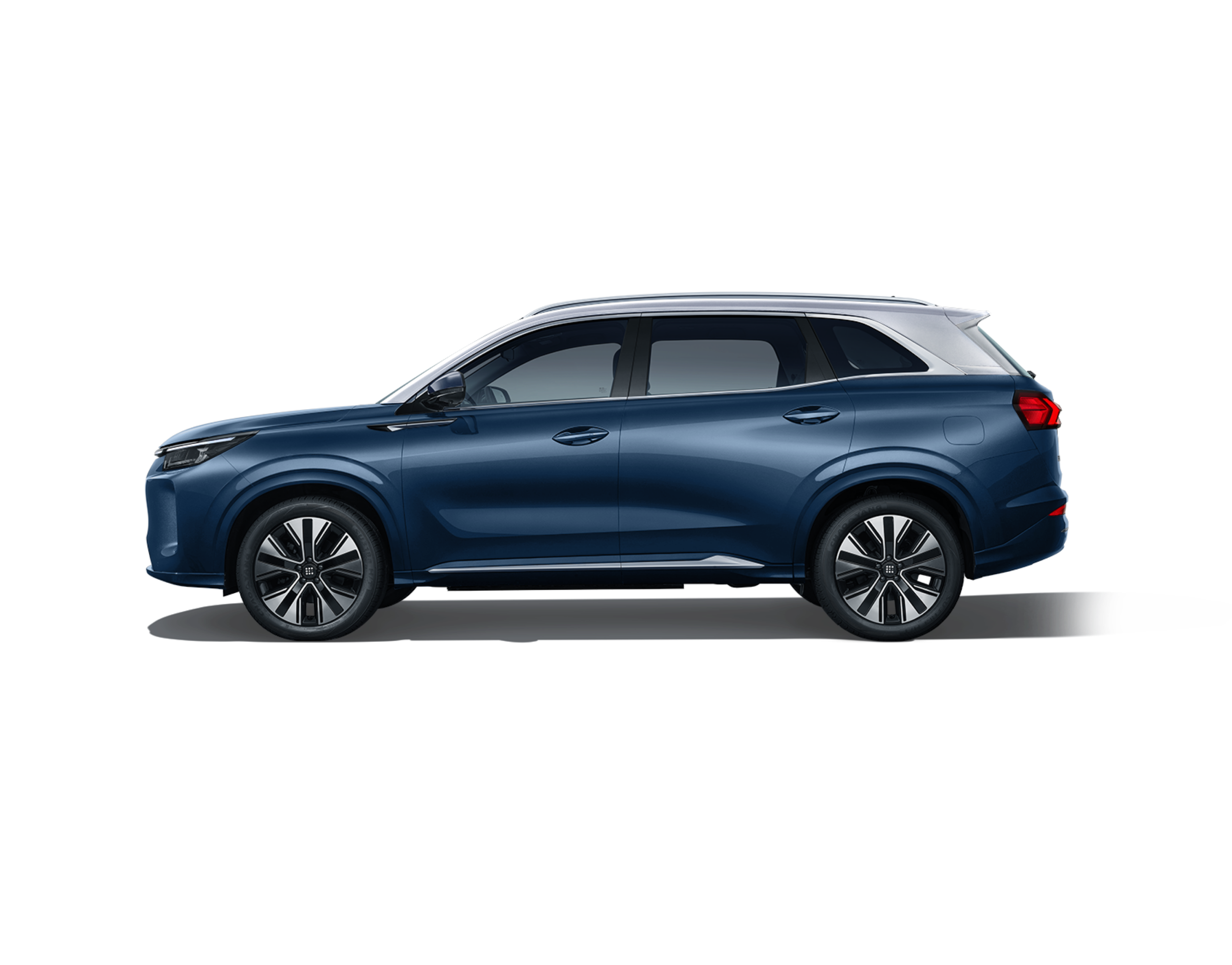

| Azure Starlight (Dual-Tone Roof) |
○ Black Roof Dual-Tone Body |
| INTERIOR COLOURS |
| Obsidian Black (曜石黑) |
● Standard |
| Cocoa Brown (可可棕) |
○ Optional |
| Sunset Orange (赤霞橙) |
○ Optional |
| DATA SOURCES |
| Livan Official Website |
Livan.com.cn (3rd Gen E5 Plus Official Specs) |
| Autohome (China) |
autohome.com.cn (2025–2026 Trim Configurations) |
| Yiche (China) |
yiche.com (E5 Plus Configuration Database) |
| Dongchedi (China) |
dongchedi.com (2026 Trim Specifications) |
| Pacific Auto (China) |
price.pcauto.com.cn (E5 Plus Detailed Specs) |
| Sohu Auto (China) |
db.m.auto.sohu.com (E5 Plus Config Table) |
| CarNewsChina Database |
db.carnewschina.com (2025–2026 Trims & Specs) |
| AutoCango Multilingual |
autocango.com (2026 Livan E5 Plus 1.5L 95HP PHEV) |
| DubiCars (UAE) |
dubicars.com (Livan E5 Plus 1.5T PHEV Dubai Listing) |
| Tencent News |
new.qq.com (3rd Gen Launch Report: Colors & Trims) |
| Yiche Hao |
hao.yiche.com (New E5 Plus Launch: From RMB 139,800) |
| Dongchedi ADAS Analysis |
L2+ ADAS 14 Hardware Units / Bosch Solution |
| Legend: ● = Standard — = Not Equipped ○ = Optional Yellow Highlight = Key Highlight |
