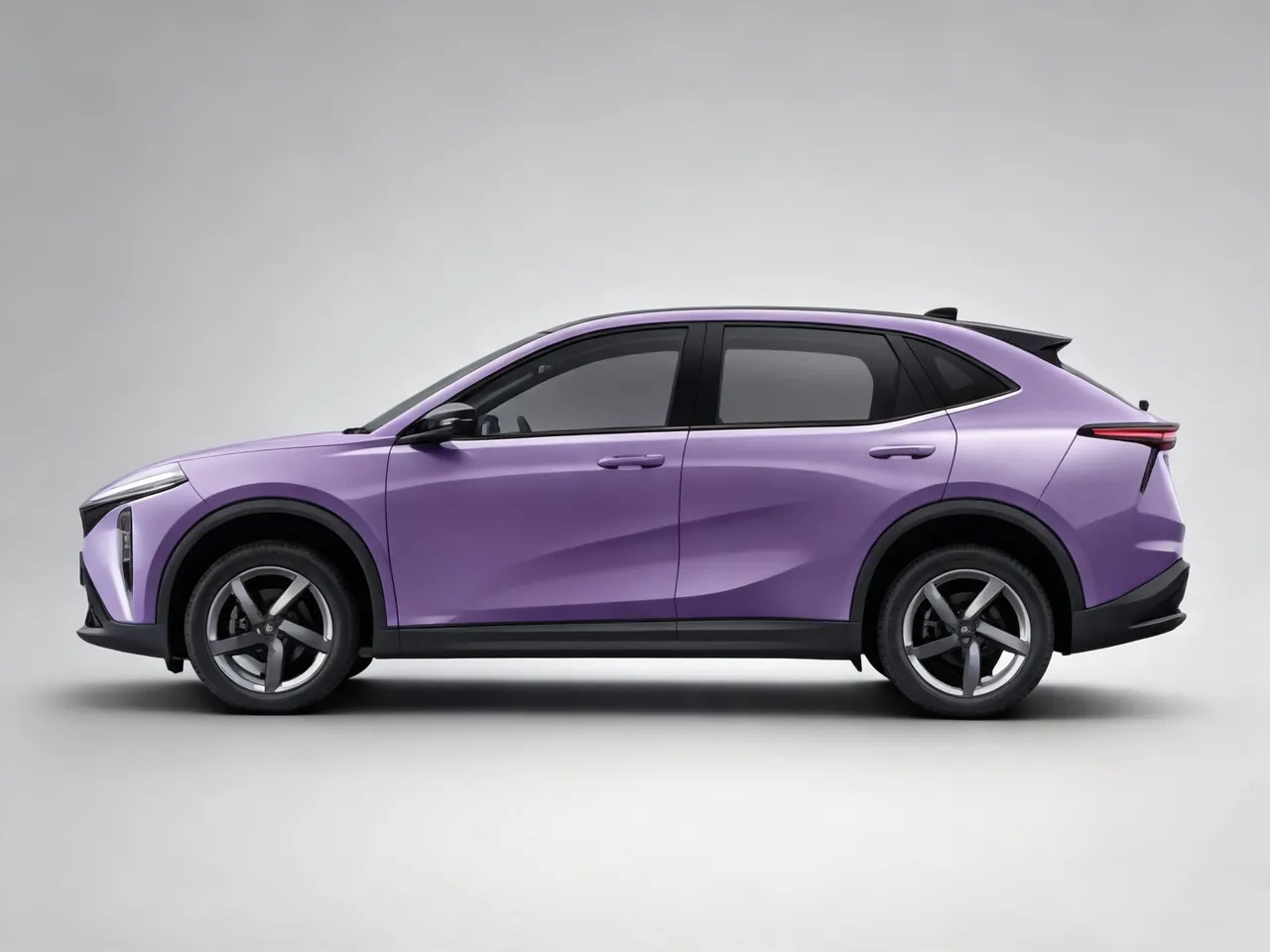

Yichi 05S 500 EU Whole Vehicle Type Approval (WVTA)
|
Type |
LS8B20 |
|
| Specification | Yichi 500 Comfort Edition | Yichi 500 Enjoyment Edition |
| Type of Energy | BEV | BEV |
| Length*Width*Height (mm) | 4640*1872*1667 | 4640*1872*1667 |
| Wheelbase (mm) | 2760 | 2760 |
| Body Structure | 5-Door 5-Seat SUV | 5-Door 5-Seat SUV |
| Maximum Speed(km/h) | 160 | 160 |
| 0-100km/h Acceleration (s) | 7.9 | 7.9 |
| 100-0km/h Braking distance(m) | ≦38 | ≦38 |
| Front Track(mm) | 1585 | 1585 |
| Rear Track(mm) | 1595 | 1595 |
| Minimum Ground Clearance (mm) | 160 | 160 |
| Max Climbing (％) | 35 | 35 |
| Minimum turning diameter (m) | 11.5 | 11.5 |
| Trunk Volume (L) | 450 | 450 |
| Curb Weight(kg) | 1880 | 1880 |
| GVW (kg) | 2255 | 2255 |
| Maximum Power (kW) | 150 | 150 |
| Maximum torque (N·m) | 320 | 320 |
| E-moter(Ps) | 204 | 204 |
| Motor Type | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total Motor Power (kw) | 150 | 150 |
| Maximum Power of Front Motor (kw) | 150 | 150 |
| Maximum Torque of Front Motor (N.m) | 320 | 320 |
| Maximum Power of Rear Motor (kw) | – | – |
| Maximum Torque of Rear Motor (N.m) | – | – |
| Number of Driving Motors | Single Motor | Single Motor |
| Motor Layout | Front | Front |
| Transmission | Single Ratio | Single Ratio |
| Driving type | FWD | FWD |
| Battery | LiFePo | LiFePo |
| NEDC (km) | 500+ | 500+ |
| Fast Charge Time (h) | 0.6 | 0.6 |
| Slow Charge Time (h) | 8.5 | 8.5 |
| Fast Charge Percentage | 80%SOC | 80%SOC |
| Battery Cooling Mode | Liquid Cooling | Liquid Cooling |
| Swapping battery | Not Supported | Not Supported |
| Battery capacity (kWh) | 63.8 | 63.8 |
| Fast Charge Power (kw) | 55 | 55 |
| Front Suspension Type | Mcpherson Independent Suspension | Mcpherson Independent Suspension |
| Rear Suspension Type | Multi-Link Independent Suspension | Multi-Link Independent Suspension |
| Steering Type | Electric Power Steering | Electric Power Steering |
| Front Brake Type | Vented Disc | Vented Disc |
| Rear Brake Type | Disc | Disc |
| Parking Brake Type | Electrical Parking Brake | Electrical Parking Brake |
| Front Tyre | ●235/50 R19 | ●235/50 R19 |
| Rear Tyre | ●235/50 R19 | ●235/50 R19 |
| Spare Tyre | Without | Without |
| Electronic Brake Force Distribution(EBD/CBC, etc.) | ● | ● |
| Brake Assist (EBA/BAS/BA, etc.) | ● | ● |
| Traction Control (ASR/TCS/TRC etc.) | ● | ● |
| ABS | ● | ● |
| Electronic Stability Control(ESC/ESP/DSC, etc.) | ● | ● |
| Blind Spot Detection（BSD） | – | ● |
| Lane Departure Warning System *4 | ● | ● |
| Lane keeping Assistance Systems | ● | ● |
| Lane Centering Control | ● | ● |
| Traffic Sign Recognition | ● | ● |
| Autonomous Emergency Braking | ● | ● |
| Door Open Warning | – | ● |
| Forward Collision Warning | ● | ● |
| Rear Collision Warning | – | ● |
| Front /Rear Parking Sensor | ●/● Front/Rear | ●/● Front/Rear |
| Driving Assistance Image | RVC | ● 360 – degree Panoramic Image |
| Cruise Control System | ● CCS | ●Full Speed Range Adaptive Cruise Control |
| Driving mode | ● Sport ● Economy ● Normal |
● Sport ● Economy ● Normal |
| APA(Auto Parking Assist) | – | ● |
| Braking Energy Recovery System | ● | ● |
| Auto Hold | ● | ● |
| Hill-start Assist Control | ● | ● |
| ADAS | ● | ●L2 |
| IVI | ●TFT | ●TFT |
| GPS | ●GPS | ●GPS |
| Navigation | ● | ● |
| E-CALL *1 *5 | ● | ● |
| BLE Phone on vehicle | ● | ● |
| SDS(Spoken Dialogue System) *1 | ● | ● |
| IOV(Internet on Vehicle) *1 | ● | ● |
| 4G/5G *1 | ●4G | ●4G |
| OTA *1 | ● | ● |
| WIFI *1 | ● | ● |
| DAB(Digital Audio Broadcasting) *1 *3 | ● | ● |
| Multimedia/Charging port | ●USB ●Type-C |
●USB ●Type-C |
| Number of USB/Type-C | ●Two in the Front/two in the Back | ●Two in the Front/two in the Back |
| Number of Speakers | 9 speaker | 9 speaker |
| LCD Instrument | ● | ● |
| EDR(Event Data Recorder) | ● | ● |
| WPC(Cellphone Wireless Power Charging) | – | ● |
| Battery Pre-heating | – | – |
| Wireless charging of power batteries | – | – |
| Reverse charging | – | ● |
| AVAS | ● | ● |
| Sunroof Type | – | ● Panoramic sunroof |
| Wheel material | ● Aluminum Alloy | ●Aluminum Alloy |
| ETG (Electric Tailgate) | – | ● |
| Low Beam Type | LED | LED |
| High Beam type | LED | LED |
| LED Daytime Lamps | ● | ● |
| Automatic headlights | ● | ● |
| Headlight adjustable | ● | ● |
| Follow Me Home | ● | ● |
| Ext Rearview Mirror Function | ●Electric Adjustment ●Electric Folding ●Heating the Rearview Mirror ● Automatic Folding after locking the Car |
●Electric Adjustment ●Electric Folding ●Heating the Rearview Mirror ● Automatic Folding after locking the Car |
| Rear Wiper | ● | ● |
| Automatic Wiper | ● | ● |
| Front and Rear Tow Hooks | ● | ● |
| IMMO | ● | ● |
| Rear Fog Lamp | ● | ● |
| Steering Wheel Material | ●Leather | ●Leather |
| Steering Wheel Position Adjustment | ● Manually Up and Down + Front and Rear Adjustment | ● Manually Up and Down + Front and Rear Adjustment |
| Shift Mode | EKS | EKS |
| Multifunctional Steering Wheel | ● | ● |
| Central Door Lock | ● | ● |
| Reading Lamp | ● | ● |
| Ambient Light | – | ● multicolor |
| Front/Rear Electric Window | ●/● Front/Rear | ●/● Front/Rear |
| Glass one key Lift | ● the Whole Car | ● the Whole Car |
| Windows with Anti-clamping function | ● | ● |
| Int Rearview Mirror Function | ● Manually Anti-Glare | ● Manually Anti-Glare |
| Vanity Mirror | ● Main driver + Lighting ● Co-pilot + Lighting |
● Main driver + Lighting ● Co-pilot + Lighting |
| Trunk Light | ● | ● |
| 12V Power | ● | ● |
| A/C Control Mode | ● Automatic Air Conditioning | ● Automatic Air Conditioning |
| Rear Vent | ● | ● |
| Temperature Zoning Control | Dual | Dual |
| Rear vent Control Panel | – | – |
| Car Air Purifier | – | ● |
| PM2.5 Filter | ● | ● |
| Key Type | ● Remote Key | ● Remote Key |
| PEPS-Start | ● | ● |
| PEPS-Access | ● | ● |
| Seat Fabric | ● Imitation Leather(or PVC) | ● Imitation Leather(or PVC) |
| Driver’s Seat function | ● 8-Way Electric adjustment ● Crew Inspection ● Seat memory function (welcome guests) |
● 8-Way Electric adjustment ● Crew Inspection ● memory function (welcome guests) ● Electric waist support ● ventilate |
| Front Seat | ● -Way Eletric Adjustment ● Crew Inspectio |
● 4-Way Eletric Adjustment ● Crew Inspection |
| Rear Headrest Adjustable | ● Adjustable Rear Headrest (up and down) | ● Adjustable Rear Headrest (up and down) |
| Rear Seat | ●3 The Proportion is 4 and 6 for Three People, with Central Armrest and Cup Holder ● Fixing mode – Seat back lock ● Adjustable Rear Headrest (up and down) ● One-piece Seat Cushion |
● The Proportion is 4 and 6 for Three People, with Central Armrest and Cup Holder ● Fixing mode – Seat back lock ● Adjustable Rear Headrest (up and down) ● One-piece Seat Cushion |
| Air Bag | ● DAB ● PAB ● SAB ● CAB |
● DAB ● PAB ● SAB ● CAB |
| Front Seat Belt | ● Seat Belt Height is Adjustable ● Force Limited |
● Seat Belt Height is Adjustable ● Force Limited |
| Rear Seat Belt | ●3 Three-point Type ● Middle Three-point Seat Belt (on the back)” |
● Three-point Type ● Middle Three-point Seat Belt (on the back)” |
| Rear Child Seat | ● ISOFIX | ● ISOFIX |
| Front Seat Belt Reminder | ● Sound + Indicator | ● Sound + Indicator |
| Rear Seat Belt Reminder | ● Sound + Indicator | ● Sound + Indicator |
| Alcolock interface *4 | ● | ● |
| DFMS *2 *4 | ● | ● |
| TPMS | ●Tire Pressure Display | ● Tire Pressure Display |
Minimum Order Quantity (MOQ): 10 units. $150 USD surcharge per unit,
Comfort Edition: USD 23,500/unit (for orders of 50 units or more),
